BC10-QF5.5-AP6X2, Turck Capacitive Block-Style Proximity Sensor, 10 mm Detection, PNP Output, 10 → 30 V dc, IP67, Датчик

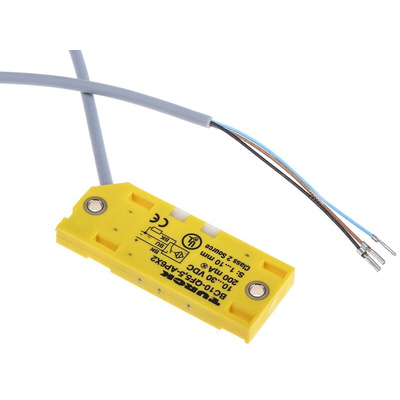

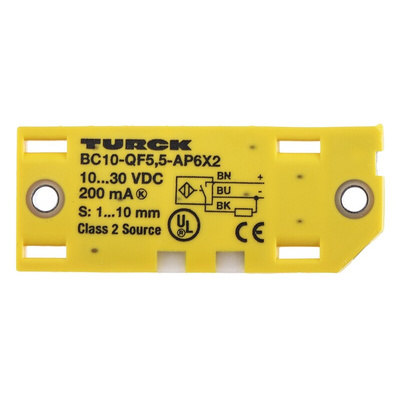

Turck Proximity Sensor, 10mm Detection Range, 20.3mm Width - BC10 Series - BC10-QF5.5-AP6X2

Keen for a way to detect the presence of objects in your work environment? Turn to this proximity sensor from Turck. It's a capacitive sensor, so it uses an electrical field to detect conductive materials, including metals, non-metals and liquids. When it senses an object in its 10mm detection range, it produces a positive voltage signal and alerts you to the object's presence. LED indicators display the operating status of the sensor, so you can troubleshoot it in a flash.

Features & Benefits

• IP67 rating indicates that it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• Short circuit protection minimises the chance of electrical damage to your equipment
• Wide operating temperature range between -25°C and +70°C to withstand harsh conditions
• Compact dimensions of 54 (L) x 20.3 (W) x 5.5mm (D) for installation in tight spaces

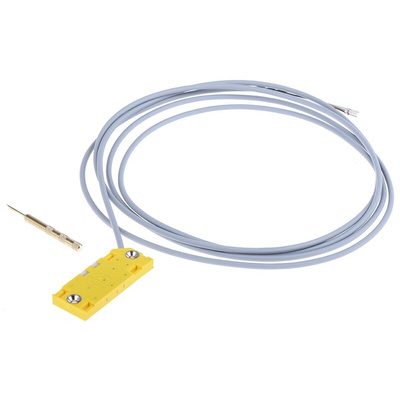

• Cable length of 2m for a flexible connection

Applications

• Avionics
• Manufacturing plants
• Process control

What's the housing made from?

The housing is made from PP, which is resistant to heat, wear and chemicals for durability in harsh environments.
