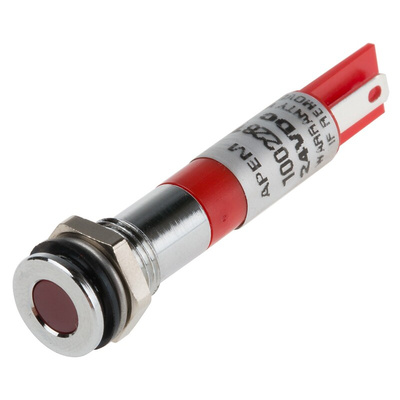

RS PRO Red Panel Mount Indicator, 24V dc, 8mm Mounting Hole Size, Faston, Solder Lug Termination, IP67, Индикатор

RS PRO Red Indicator, 24 V DC, 8 mm Mounting Hole Size, Faston, Solder Lug Termination, IP67

This red indicator from RS PRO comes with a bright LED. This provides the illumination needed for signalling the status of machinery in industrial and commercial settings. It has a flush bezel that fits neatly on flat panels and is supplied with a fixing nut and spring washer for easy mounting.
This indicator features a reverse protection diode. This ensures no damage occurs if the power supply's input and output terminals are accidentally swapped. This robust unit also has an IP67 rating, which means it's protected from dust ingress and can withstand immersion in water of up to 1 m.
This product is RoHS (Restriction of Hazardous Substances) compliant as it contains only minimal amounts of environmentally harmful substances. You'll typically find it used on medical appliances and equipment used for telecommunications and transport.

Features and Benefits

• Chrome-coloured bezel
• Current rating of 20 mA
• Intensity of 10 mcd
• Length of 28.8 mm
• Mounting hole size of 8 mm
• FASTON solder lug-type termination
• Voltage rating of 24 V DC
