NFL21SP706X1C3D, Murata, NFL21SP, EMI Filter, 16 V dc, 150mA, 0805 (2012M), SMD, Flat Contact, 2 x 1.25 x 0.85mm, Фильтр

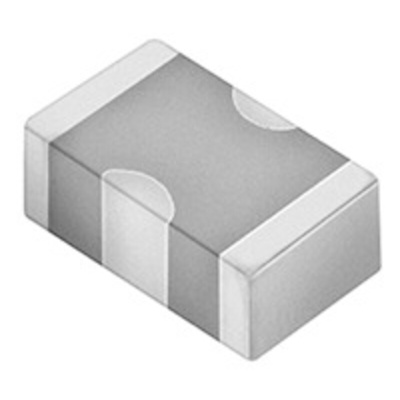

0805 EMIFIL® (LC Combined) Multilayer Type NFL21SP Series

EMIFIL NFL21S series high performance EMI suppression filter chip (2.0x1.25mm size) for high speed signal lines by using Murata's processing technology

Suppresses noise with little attenuation of the signal itself due to its steep filtering characteristics
Murata's original internal structure design enables excellent noise suppression up to high frequencies
Available in three different values of cut-off frequency ranging from 10MHz up to 50MHz

Applications

Suppression of high magnitude radiated noise generated by high speed digital circuits such as clock and RGB.

Signal/Line/Noise and Feedthrough – PCB Mount (SMT)

Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.

NFL21SP Series Chip EMIFIL LC Combined
