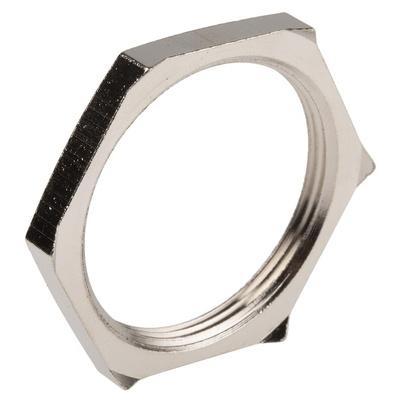

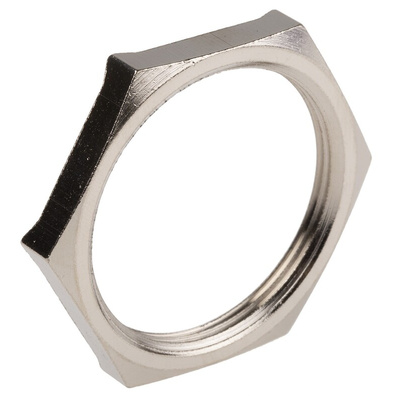

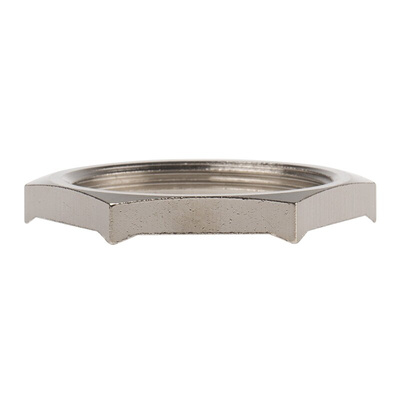

52103350, Lapp Silver Flame Retardant, Halogen Free Nickel Plated Brass Cable Gland Locknut, M40 Thread, Гайка

Skintop SM-PE Cable Gland Locknuts

From Lapp, this Skindicht SM-PE-M Series counter nut is for use with Skindicht EMC graded cable glands. It attaches to the cable gland to ensure a secure connection in pre-drilled bore holes. It also has a secondary function in that in has a cutting edge that cuts through the insulating layer of the attached cable, so that optimum contact is assured. This makes it ideal for applications where EMC and protection against signal interference is a concern.

The lock nut also has a robust nickel plated brass construction, and will ensure the gland attaches firmly, even on lacquered, anodized or powder coated panel surfaces.

Features and Benefits

• Robust Construction
• Cutting Edge
• Easy fitting
• Operating Temperature of -60°C to +200°C

Applications

The Skindicht counter-nut is used in panels, junction boxes and machine housing in earthing and EMC applications.

• Industrial
• Maintenance
• Repair

Applications

This lock nut is for use with Lapp EMC cable glands.

• 839-5315 is a PG9 EMC Cable Gland
• 839-5319 is a PG11 EMC Cable Gland
• 839-5328 is a PG13.5 EMC Cable Gland
• 839-5321 is a PG16 EMC Cable Gland
• 839-5325 is a PG21 EMC Cable Gland
• 839-5334 is a PG29 EMC Cable Gland
• 839-5337 is a PG36 EMC Cable Gland
• 839-5331 is an M16 EMC Cable Gland
• 839-5340 is an M20 EMC Cable Gland
• 839-5343 is an M25 EMC Cable Gland
• 839-5347 is an M32 EMC Cable Gland
• 839-5356 is an M40 EMC Cable Gland
• 839-5359 is an M50 EMC Cable Gland

Accessories

Lapp provide a handy cable gland wrench set to assist in cable gland removal.

• 458-3947 is a Spanner set for M12, M16, M20, M32 and M40 glands

Standards

RoHS, CE, EC000940 Classification

LAPP Cable Gland Locknut, Cutting Edge, 5.5mm Nut Thickness - SKINDICHT Series - 52103350

Looking for a durable tool to prevent accidental disconnection of cable glands in your industrial enclosures? Choose this locknut from LAPP. It's made of nickel-plated brass, which means that it can withstand the demands of industrial environments. Thanks to its cutting edge, it penetrates the insulating layer of the attached cable to ensure optimal contact and prevent EMI, giving you noiseless signal transmission.

• M40 thread for simple installation with a wrench
• Wide operating temperature range of -60°C to +200°C for use in extreme conditions

Applications

• Process and packaging facilities
• Agricultural equipment
• Marine engineering

Can I use this cable gland locknut outdoors?

In addition to its robust construction, this unit is UV-stable, which means that it won't deteriorate when exposed to sunlight, making it suitable for outdoor use.

SKINDICHT SM-PE Data Sheet

Datasheet - 52103350
