RS PRO Up to 65W Plug-In AC/DC Adapter 18 → 20V dc Output, Блок питания

RS PRO 18 V to 20 V Power Supply, Up to 65 W, C8 Connector

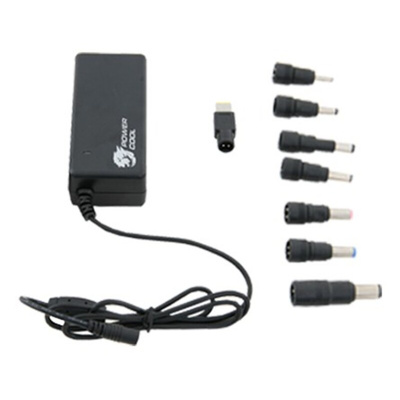

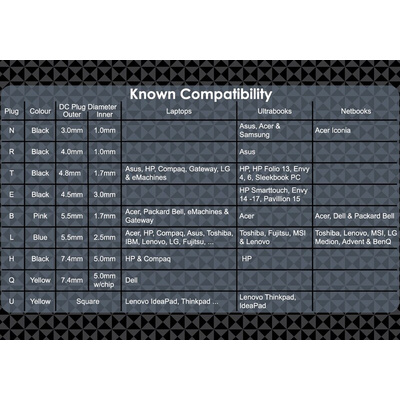

This universal switch-mode power supply (SMPS) from RS PRO safely converts AC input currents to DC outputs, letting you power your DC-compatible electrical equipment from the mains. It has eight interchangeable output connectors so you can use it with many different laptops and notebooks.
It features overcurrent, over-power and over-temperature protections to guard against malfunctioning, while its overvoltage and short circuit protections stop power surges damaging your equipment. A handy LED (light-emitting diode) indicator lets you know when the device is on.
The component is ErP (Energy-related Products) and CEC (Commission for Environmental Cooperation) compliant. This means this product meets efficiency legislation for external power supplies.

Features and Benefits

• Output voltage rating of 18 to 20 V DC
• Energy Efficiency Level V
• Efficiency rating of 87%
• IEC320-C8 input connector
• Input frequency of 50 to 60 Hz
• Rated power output of up to 65 W
• C8 plug type
• Desktop mounting type
• Input voltage range of 100 to 240 V AC
• Maximum input current of 1.3 A
• Mean time between failures (MTBF) of 50000 h
• Energy-saving chip technology
• One output
• Dimensions of 114 (L) x 50 (W) x 32 mm (D)
• Ripple and noise of 300 mV
• Weight of 260 g
