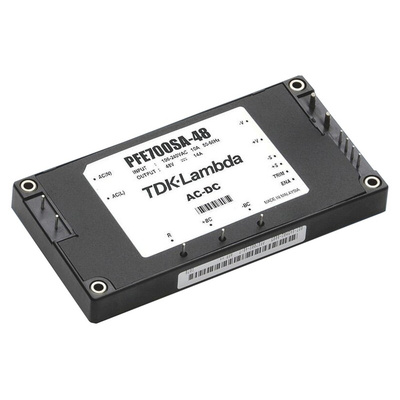

TDK-Lambda Switching Power Supply, PFE-700SA-48, 51V dc, 14A, 714W, 1 Output, 85 → 265V ac Input Voltage, Источник питания

TDK-Lambda, 700W PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - PFE-A Series

The TDK Lambda PFE-SA Series of AC-DC full-brick power modules come with efficiency up to 91%. These encapsulated power supplies are baseplate-cooled products, particularly suited for building onto outdoor applications and for equipment requiring water-cooling hermetic sealing, fanless operation and compact design. The PFE-SA accepts a wide, universal AC input from 85V to 265V at 47-63Hz and features active power factor correction and an input to output isolation of 3kV for one minute. The PFE-SA series of full-brick encapsulated power supplies provides a convenient AC-DC solution for applications such as industrial, MIL-COTS, broadcast, Datacom and telecom, test & measurement, LED displays and signage.

Low profile, small size
100C baseplate temperature
High power density
High Efficiency
Suitable for conduction cooling
Power Factor Corrected (PFC)

Standards

UL60950-1, CSA60950-1, EN60950-1

Approvals

UL, CSA, cUL, EN, CE, LVD

PFE300SA-PFE1000F Series Data Sheet
