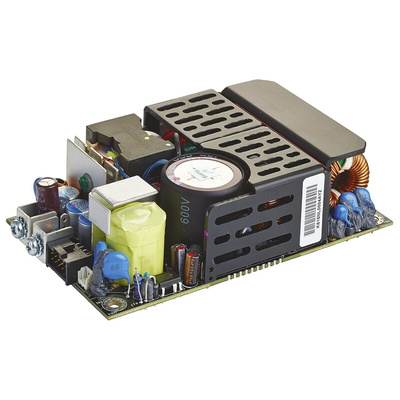

Artesyn Embedded Technologies Switching Power Supply, LPS365-M, 24V dc, 19.5A, 240W, 1 Output, 120 → 300 V dc,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies LPS365-M series embedded switch-mode power supply is 240W, AC to DC plug-in device with a single output. This power supply also provides a 12V fan and 5V standby outputs. Its full-load efficiency of up to 92% and depending on operating conditions it provides up to 220W output power with free air convection cooling and up to 360W with 400 LFM of forced air. It has a universal input supply voltage rating ranging between 90VAC and 264VAC or 120VDC and 300VDC.

Features and Benefits

Active power factor correction
Adjustable main output
Built-in class B EMI filter
Footprint is 3in and 5in
Isolated 12V fan output
Less than 1U high
Output current is 19.5A at 24VDC
Overload and thermal overload protections
Overvoltage protection
Power fail
Remote sensing
Standby output is 5V

Applications

Light industrial systems
Non-patient contact medical application

Certifications

CB certificate and report
CCC Approval
CE certified
cULus60601-1
cULus60950
TUV60601-1
TUV60950
UL60601-1
UL60950

LPS365-M - Data Sheet
