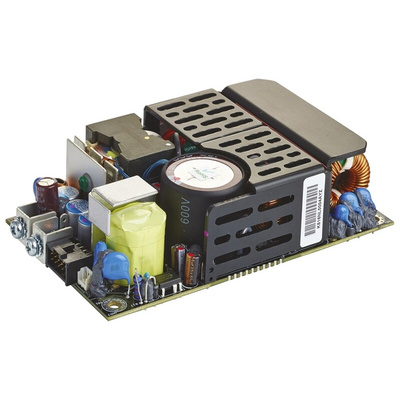

Artesyn Embedded Technologies Switching Power Supply, LPS368-M, 48V dc, 9.72A, 240W, 1 Output, 120 → 300 V dc,, Источник питания

200-360W, Universal Input, 3x5 inch, Single Output, Medical Power Supply, LPS360-M Series

The Artesyn LPS360-M series of open-frame AC-DC power supplies includes four single output models, offering voltages of 12 V, 15 V, 24 V or 48 V. Each power supply also provides 12 V fan and 5 V standby outputs. All four models feature ITE and medical safety approvals and accept a universal input of 90—264Vac or 120—300Vdc. The LPS360-M power supplies have a full load efficiency of up to 92%. Depending on operating conditions, they provide up to 220W of output power with free air convection cooling and up to 360W with 400 LFM of forced air. Less than 1U high, the power supplies are ideal for light industrial systems as well as for non-patient contact medical applications.

Medical and ITE safeties
Active power factor correction
3” x 5” footprint
Less than 1U high
Remote sense
Power fail
Adjustable main output
Built-in Class B EMI filter
Overvoltage, overload and thermal overload protections
Isolated 12 V fan output
5 V Standby output
Total Max Power 360 W
Total Max Current 50 A
Input Voltage 90 V to 264 V
Output Voltage 12 V to 52.8 V
Operating Temperature -20°C to +50°C

Standards

TUV60950, TUV60601-1 ; UL60950, UL60601-1 ; cULus60950, cULus60601-1

Approvals

TUV, UL, cULus, CB Certificate & report, CE Mark (LVD), CCC Approval

LPS368-M - Data Sheet
