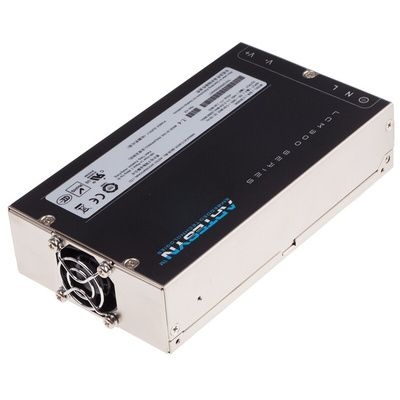

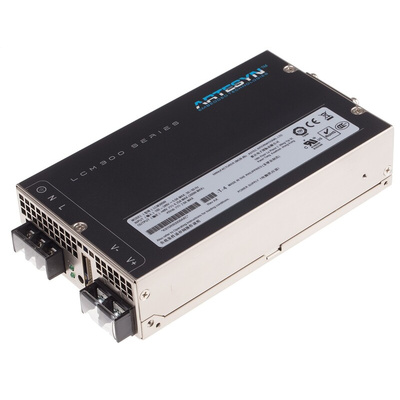

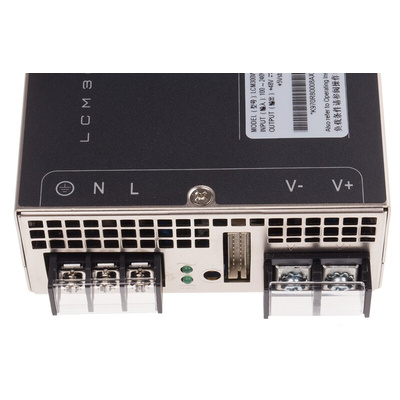

Artesyn Embedded Technologies Switching Power Supply, LCM300W -T-4, 48V dc, 6.3A, 310W, 1 Output, 127 → 374 V, Источник питания

300W, Universal Input, 4x7 inch, Single Output, Medical Power Supply, LCM300 Series

The Artesyn LCM300 series of enclosed front-end AC-DC power supplies comprises five single output models, providing standard voltages of 12V, 15V, 23V, 36V or 48V, plus a 5V standby output. Each model accepts a universal input of 90–264Vac, carries medical safety approvals and has a typical full load efficiency of 91%. These PMBus™-compliant digitally controlled power supplies offer a high level of modification flexibility, for application-specific functions, such as special battery charging and management, peak load handling, voltage control and fan speed profiles. Housed in a compact 4 x 7 inch enclosure that is less than 1U high, LCM300 power supplies incorporate built-in smart fans for cooling and can deliver up to 310W of output power. The 24V and 36V models can deliver up to 350W at operating temperatures up to 45°C.

Medical and ITE safeties
310W output power (350W at 45°C for 24V and 36V models)
Industrial/Medical Safety
Optional 5V @ 2A Housekeeping
High Efficiency up to 91%
Variable speed Smart Fans
DSP controlled
PMBus Comliant
±20% adjustment range
Single output
Operating Temperature -40°C to +70°C

Standards

UL60950-1 508/1598/1433, UL60601-1 ED 3; CSA60950-1; VDE60950-1, VDE60601

Approvals

UL, CSA, VDE, China CCC, CB Scheme Report/Cert

LCM300W -T-4 - Data Sheet
