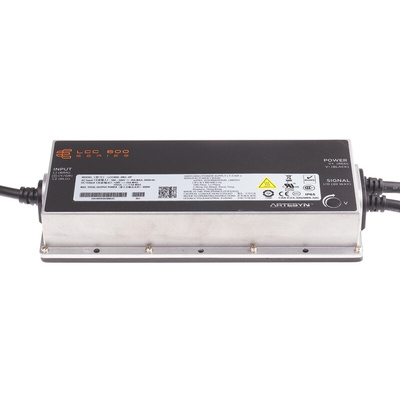

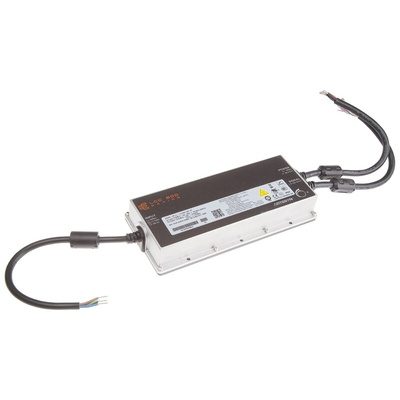

Artesyn Embedded Technologies Switching Power Supply, LCC600-28U-4P, 28V dc, 21.4A, 600W, 1 Output, 90 → 264V ac, Источник питания

600W, Universal Input, Wide Output Adjust, Medical Power Supply, LCC600 Series

The Artesyn LCC600 series of enclosed AC-DC power supplies accept a universal input of 90–264 Vac, carries medical safety approvals and has a typical efficiency of 93%. These PMBus™-compliant digitally controlled power supplies offer a high level of modification flexibility. The LCC600 series of AC-DC power supplies deliver 600W full power at elevated temperatures.

Wide Operating Temperature Range (-40 to 85°C Base plate)
Wide Output Adjust
Remote Output On/Off
AC_OK; DC_OK Signals
5V Standby Voltage
Conduction-cooled
I2C / PMBus

Standards

UL60601-1 2nd Ed; CSA60601-1 2nd Ed; ANSI60601-1; TUV60601-1 2nd Ed; TUV60601-1 3rd Ed.; IEC60950-1, IEC60601-1

Approvals

UL, CSA, TUV, China CCC, CE Mark

LCC600-28U-4P -Data Sheet
