ACT Meter CHROME-IBT Battery Tester 12 V, Тестер

ACT Meter Battery Tester

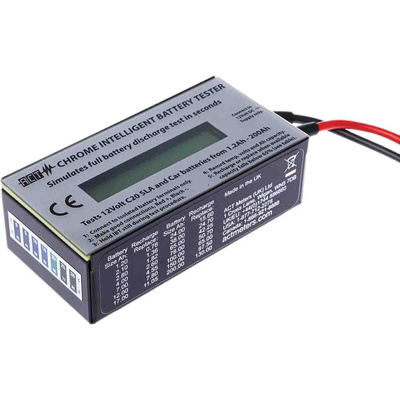

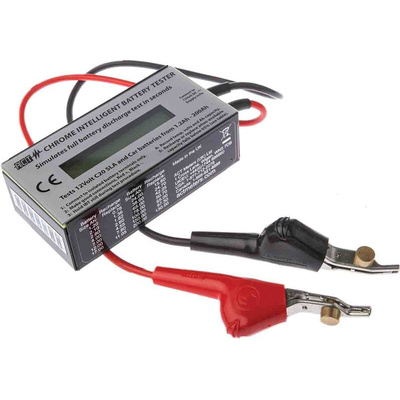

The ACT Meter chrome intelligent battery tester is designed for 12V lead-acid batteries of current capacity 1.2Ah to 200Ah. It accurately measures the available ah capacity based on the battery's temperature and state of charge. This enables you to check the voltage and test the capacity of new batteries straight from the box, as well as used batteries which may show abnormal ah capacity caused by excess temperature or from being under or overcharged. A table on the side of the meter indicates when batteries should be recharged or replaced due to ageing or operating conditions (65% of rated capacity).
Note:

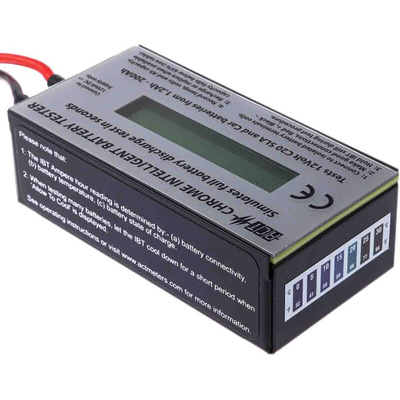

A temperature-sensitive strip is located on the unit to record the ambient temperature.
Supplied with:
Act chrome intelligent battery tester

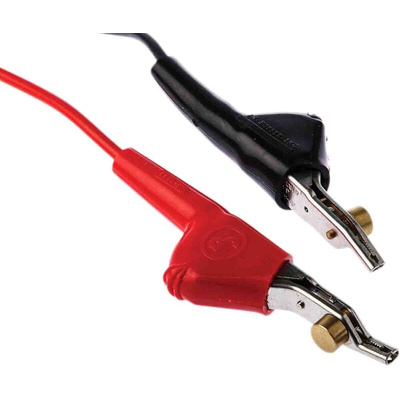

Act/3532 terminal connectors

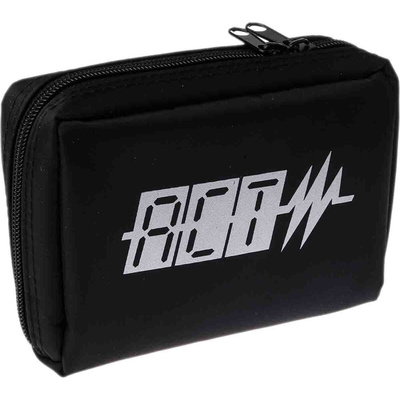

Act/410 soft carry case
Sample act/BTL labels
Operating instructions
Certificate of calibration

Features and Benefits

Tests 12V SLA and flooded lead acid batteries
Simulates a full (20-hour) battery discharge test within seconds
Displays DC voltage and ampere-hour (Ah) capacity available in the battery
Advanced pulse load analysis accurately measures ah capacity available in seconds
Accurate ah capacity based on battery's temperature and state of charge
Reverse polarity protection
Green back-lit LCD display

Applications

Fire systems
Security systems

Certifications

CE certified

ACTCHROME Operation Instructions

Chrome Datasheet

Datasheet - CHROME-IBT
