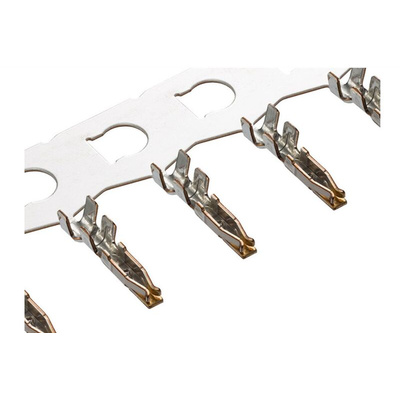

503765-0098, Molex Pico-Lock Series Female Crimp Terminal, 30AWG Min, 28AWG Max, Контакты

Pico-Lock Terminal Contact Series 503765

The Pico-Lock Crimp Terminal Contact is for use in Crimp Housings see stock number 839-9844 typical.
The mating area of the Pico-Lock Crimp Terminal Contact is Gold plated with the insulation and wire barrel areas being Tin plated.
28-30 AWG Wire with an Insulation Diameter of 0.5 - 0.7mm is required for this Pico-Lock Crimp Terminal Contact.

Molex Crimp Terminal, 1.5A Maximum Current, 150V Maximum Voltage - Pico-Lock Series - 503765-0098

Need to form a lasting wire-to-board bond? Pick this crimp terminal from Molex to complete the circuits that power your applications. It fits snuggly around your 30 to 28AWG conductor for optimal conductivity and reliable signal relays. The integrated positive locking system firmly holds wires in place to reduce accidental disconnections. Plus, the wide-fitting tabs give you PCB retention and mechanical stability to further boost performance. Installation is a cinch – just insert your lead and crimp the casing to secure it.

Features & Benefits

• 150V maximum voltage rating for use with demanding applications
• Versatile component relays data and electrical current

Applications

• Consumer electronics
• Robotics systems
• Medical devices
• Industrial equipment
• Household appliances

What's the difference between a male and female crimp terminal?

A male crimp terminal works like a plug, while the female unit – like this one – is a socket that goes around a wire.

1.00mm Wire-to-Board - Molex Pico-Lock

The 1.00mm pitch Pico-Lock range of Wire-to-Board Connectors from Molex has a Low Profile on the board with a High Current capability and a durable Locking System. The positive Locking System of the 1.00mm pitch Pico-Lock range of Wire-to-Board Connectors is situated on the side of the connector crimp housings to maintain the Low Profile height. PCB retention and mechanical stability is provided by the wide fitting nails (solder tabs) of the 1.00mm pitch Pico-Lock range of Wire-to-Board Headers. The design of the 1.00mm pitch Pico-Lock range of Wire-to-Board Connectors includes Polarization and Mating Guide to prevent mismating on connection. Visual mating assurance plus additional retention is provided by the Top Friction Lock of the 1.00mm pitch Pico-Lock range of Wire-to-Board Connectors.

Pico-Lock 1.0 Wire-to-Board Receptacle Crimp Terminal Contact - Drawing

Pico-Lock 1.0 Wire-to-Board Receptacle Crimp Terminal Contact - Datasheet

Pico-Lock 1.0 Wire-to-Board System- Application Specification

Pico-Lock SMT Wire-to-Board System - Brochure

Application Specification Sheet - 503765-0098
