RS PRO Sensor Tester for Use with 18 V dc / 35 mA Check of Proximity Switches, RoHS Compliant Standard

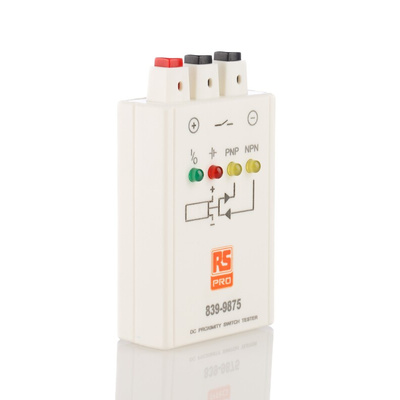

RS PRO Battery-Operated Sensor Tester for Proximity Switches

From RS PRO this is the battery-operated Proximity Switch Tester designed to test three or four wire DC proximity switches with either PNP or NPN Outputs. The sensor tester us supplied with two 9V batteries ready for immediate proximity switch testing and can test for inductive (metal sensing), capacitive, photoelectric or ultrasonics.

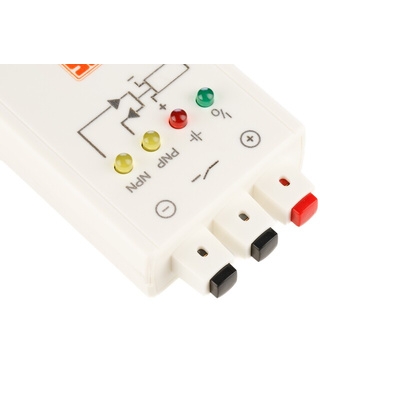

LED and audible sound indicators show how the proximity switch is operating displaying the functionality of the switch allowing you to quickly check the operation of the proximity switch sensor. By using the RS PRO Sensor Tester is a cost saving as you can avoid unnecessary replacement of sensors with instant fault finding.

Features & Benefits

• LED Status function indication.


• Audible status function indication.


• Spring loaded terminals.


• PNP and NPN Output testing.


• Fitted with 2 x 9 V batteries.


• Battery status indication

Testing Instructions

Connect the proximity switch to the switch tester, place a suitable target in front of the switch. If the switch is functioning correctly, the unit will give audio and visual indication showing the switch operates and indicating the functionality of the switch according to the chart found on the datasheet.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
