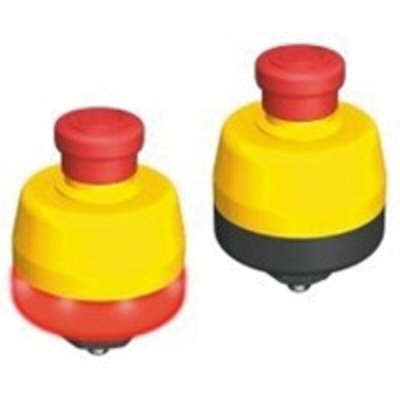

SSA-EB1PLXR-12ECQ8, Banner SSA-EB Series Twist Release Illuminated Emergency Stop Push Button, Surface Mount, 2NO + 2NC, IP65

Banner Emergency Stop Push Button, 2A Current Rating, 40mm Button Head Diameter - SSA-EB Series - SSA-EB1PLXR-12ECQ8

Halt equipment in its tracks with this emergency stop push button from Banner. It cuts the power to a machine immediately when pressed, helping to prevent equipment damage and injuries. As it has an IP65 rating, this unit is fully protected against dust and low-pressure water jets, so it stays strong in tough industrial environments. Its bright red and yellow housing means it catches your eye in busy workspaces. Thanks to its latching mechanism, the push button stays down until you reset it, so faulty kit can't accidentally power up.

• Simple twist-release actuator for quick resets
• Contact block opens NC contacts automatically if the actuator disconnects to stop damage from assembly faults
• Large push button head diameter of 40mm makes it a cinch to press
• M12 quick-disconnect port for ease of use

Applications

• Industrial automation
• Packaging industry
• Heavy engineering

How can I tell that this emergency stop push button is activated?

The device's actuator lights up when it disconnects your equipment, so you can tell if it's active in a flash.

Turck SSA Enclosed E-Stop Push Button Series

This Enclosed E-Stop push button has a rugged design which helps create easy installation with no assembly or individual wiring required. The E-stop button is a standard push-to-stop button, twist-to-release or pull-to-release operation per - IEC60947-5-5. The push button is also compliant with ANSI B11.19, ANSI NFPA79 and IEC/EN 60204-1 Emergency Stop Requirements.

Easy to install
Operating Temperature Range -25 to + 70°C

Datasheet

Machine Guarding and Safety Range Overview

Line Drawing - SSA-EB1PLXR-12ECQ8
