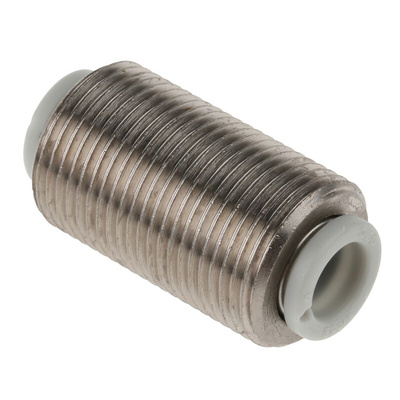

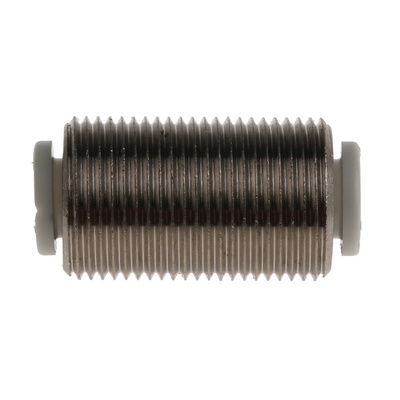

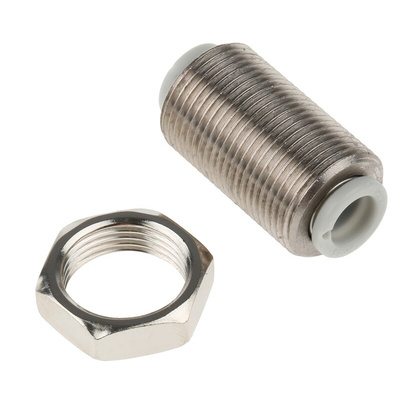

KQ2E06-00N, SMC Pneumatic Bulkhead Threaded-to-Tube Adapter, Push In 6 mm BSPPx6mm, Переходник

8404611
Номер производителя: KQ2E06-00NПроизводитель: SMC
Цена за шт. (норма упаковки 10 шт)
1368.00 руб. (С НДС) *
Количество 10+ 50+ 100+
Цена 1368.00 руб. 1326.00 руб. 1284.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Bulkhead Union KQ2E

The KQ2E one-touch bulkhead unions are used to connect tubes through a panel and are suitable for use with nylon and polyurethane tubes. The special profile design of these bulkhead unions provide positive sealing under pressure without reducing the flow. When the connector is removed from the tube, the chuck and collet are released, thus preventing them from biting into the tube excessively.

Tube-to-tube fitting
The special profile design of the seal provides positive sealing under pressure without reduced flow
Release button allows tube to be removed easily without damage
Maximum operating pressure 10 bar
Maximum vacuum operating pressure -100kPa
Proof pressure 3MPa
Ambient and fluid temperature -5 to +60°C (water 0 to 40°C)

Note

Models with a -X2 suffix in the Mfr Part No. are copper-free (electroless nickel plated).

Bulkhead Adapators

Техническая спецификация
pdfDatasheet
pdfDatasheet
Внешнее покрытие:
Никелированный
Давление - максимальное рабочее:
1 МПа, 3 МПа
Корпус - материал:
Никелированная латунь
Материал резьбы:
Никелированная латунь
Монтажное отверстие:
15мм
Производитель - серия:
KQ2
Рабочая температура - максимальная:
+40 °C, +60 °C
Рабочая температура - минимальная:
-5 °C, 0 °C
Соединение трубы:
Push In 6 mm
Соединение трубы - Размер трубы:
6мм
Соединение трубы - Тип:
Push In
Соединение трубы A:
Push In 6 mm
Соединение трубы A - Размер трубы:
6мм
Соединение трубы A - Тип:
Push In
Стиль подключения:
Threaded-to-Tube
Тип:
Bulkhead
