FS-1E-2006-01, Block N87 E 20 Transformer Ferrite Core, 1470nH, For Use With Reactors, Transformers, Ферритовый сердечник

Block FS-1E Series Size 20/10/6 Ferrite Transformer Cores

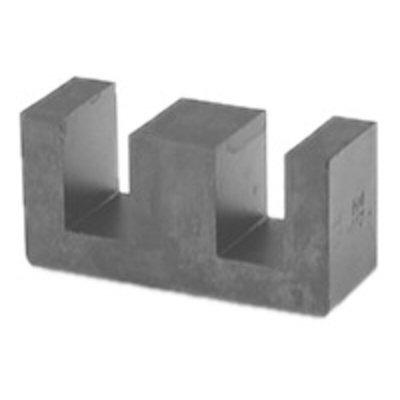

FS-1E series size 20/10/6 ferrite transformer cores made from N87. These standard 'E' type ferrite transformer cores are available with air gaps inserted:
Stock number 840-7434 has a 0.1mm gap
Stock number 840-7522 has a 0.2mm gap
Stock number 840-7604 has a 0.5mm gap
Stock number 840-7686 has a 1.0mm gap
Typical applications for these ferrite cores include transformers and inductors in switch mode power supplies
For bobbins see stock numbers 840-7248 and 840-7257
For potting box see stock number 840-7383 and 840-7392

Transformer Ferrite Kits - Cores

The A_L value in the table applies to a core set consisting of two cores without air gap Cores ETD conform to IEC 51(CO)276

FS-1E Series Size 20/10/6 Ferrite Transformer Cores
