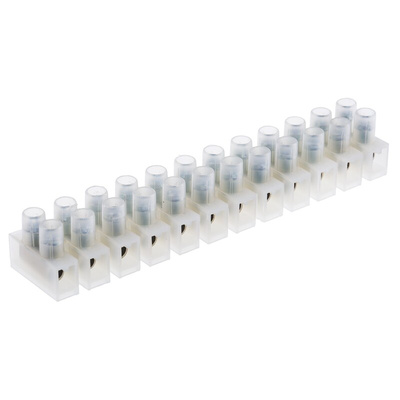

RS PRO Non-Fused Terminal Block, 12-Way, 17.5A, 16 AWG Wire, Screw Termination

RS PRO 12 Way Non-Fused Terminal Block, 16 AWG, 17.5 A, Cable Mount, 1.5 mm², Screw Terminals, Polyamide, 450 V

Looking for a way to connect multiple stripped wires? Use this RS PRO non-fused terminal block to safely insulate and join 12 cable pairs.
The wire protection ensures your attached cables aren't damaged by abrasions caused by accidental contact with the housing ports or other wires. Nickel-plated brass lines the ingress and egress ports to ensure uninterrupted conduction of the electrical current to your components so they can operate effectively. You can firmly connect your wires to the terminals with the captive and raised screw clamps so that they stay in place.
This terminal block is Verband der Elektrotechnik (VDE) approved which means you're assured a quality and safe product. You can use it for electrical connections in outdoor and indoor settings.

Features and Benefits

• Cable CSA (Cross-Sectional Area) of 1.5 mm²
• Natural colour
• Brass contact material
• Nickel contact plating
• Current rating of 17.5 A
• Not fused
• Polyamide material
• Maximum operating temperature of +800°C
• Minimum operating temperature of -40°C
• Cable mounting type
• Twelve ways
• Screw termination method
• Terminal block strip type
• Voltage rating of 450 V
• Wire protection
• Wire size of 16 AWG (Americal Wire Gauge)

RS Pro Datasheet
