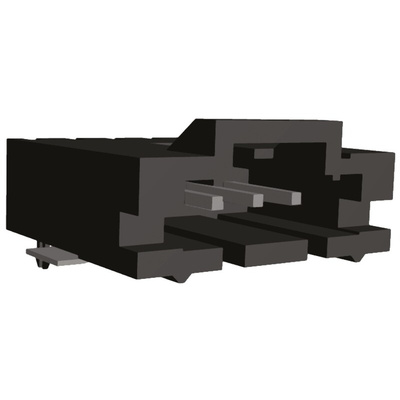

5-147324-3, TE Connectivity AMPMODU MTE Series Right Angle Surface Mount PCB Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

AMPMODU MTE IDC Polarized/Latching 2.54mm SMT Right Angle Headers

AMPMODU MTE SMT polarized/latching 2.54 mm pitch single row plug style headers with brass, gold duplex or tin plated pin contacts. These AMPMODU MTE SMT single row headers are made from 94V-0 rated black thermoplastic, have square posts with hold downs.
X-147278-X Plating B, Gold 0.38 μm (15 μinch) on contact area
X-147324-X Plating C, Tin on entire post
X-147323-X Plating A, Gold 0.76 μm (30 μinch) on contact area
X-1375583-X Plating A, Gold 0.76 μm (30 μinch) on contact area

Part Number Key

TE Connectivity AMPMODU MTE Interconnection System

AMPMODU MTE 2.54 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTE connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTE IDC connectors can be quickly assembled to discrete wire. The AMPMODU MTE connector system consists of single row receptacle housings preloaded with IDC contacts and PCB headers. Coupling shrouds are also available which allow the ganging of connectors to form larger single row or double row connectors

AMPModU MTE Header Assembly Latching Right Angle SMT - Drawing

AMPMODU MTE 2.54mm Right Angle SMT Shrouded Polarized/Latching Headers
