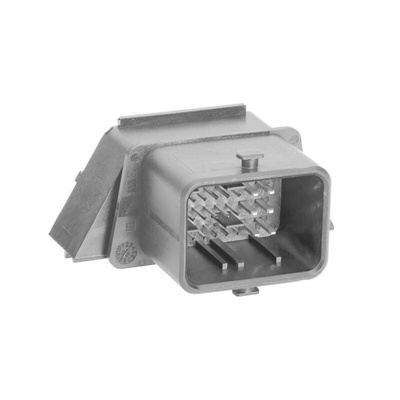

64334-0100, Molex, CMC Automotive Connector Plug 32 Way, Solder Termination

CMC Hybrid Connector, PCB Headers

These CMC hybrid PCB Wire-to-Board Headers are right angle mount and can hold up to three different terminal sizes; 0.63mm, 1.50mm and 2.80 mm. For mating connectors see stock numbers 723-9347 or 723-9359 or 774-8144 typically.

Molex Automotive Connector, 14V DC Maximum Voltage, Solder Terminals - CMC Series - 64334-0100

Keep your vehicle on the road with this automotive connector from Molex. The robust unit is designed to make a durable connection with engine control units, which helps to keep cars and buses running reliably. Its nylon resin housing resists wear and extreme temperatures up to +105°C to deliver an extended service life in harsh operating conditions. As you can load the unit with 32 circuits, you benefit from high packing density. This handy header is reusable, as you can safely mate it with a compatible part up to 20 times.

Features & Benefits

• Polarised, so can't mate with a mismatched part
• Colour keying assists with quick and easy installation
• Low-resistance tin-plated contacts for optimal electrical conductivity

Applications

• Marine industry
• Automotive manufacturing
• Agricultural equipment

What type of terminals does this automotive connector have?

The header has solder terminals that ensure wires are securely attached, even in vibrating conditions.

Molex CMC Hybrid Connectors

CMC Connector System - Brochure

CMC Header Assembly 32 Circuit - Drawing
