64319-3211, Molex, CMC Automotive Connector Socket 32 Way, Crimp Termination

CMC Hybrid Connector, Receptacle - 64320 and 64318 Series

These CMC Hybrid Wire-to-Board automotive connector Receptacles are high density and sealed using a high performance matte seal technology. For suitable terminals see stock numbers 723-9371 and 723-9362. For suitable blind plugs see stock number 723-9381. For suitable wire cap see stock number 723-9384 typical.
For CMC Headers see stock number 723-9331 typical.

Note

Stock numbers 841-1861 and 723-9347 are Left Wire, stock numbers 841-1852, 841-1865, 774-8144 and 723-9359 are Right Wire.

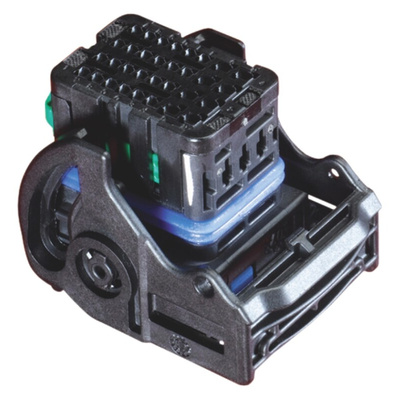

Molex Female Automotive Connector Socket, 32 Way, 4 Rows - CMC Series - 64319-3211

This automotive connector socket from Molex securely connects wiring to a PCB (printed circuit board). It's specifically designed for powertrain and body electronics in cars, trucks and buses where high conductivity is needed in harsh environments. It has an IP69K (ingress protection) rating, which means it's shielded from dust and protected against high-pressure water sprays and high temperatures. The socket is polarised, so it won't connect with a mismatched part, preventing the risk of accidental mating with an incorrect unit.

• Wide operating temperature range of -40°C to +125°C for use in harsh environments
• Compact dimensions of 25.25 (H) x 47 (W) x 40.1mm (D) for use in small spaces
• Robust PET (polyethylene terephthalate) housing is corrosion-resistant for longevity
• Crimp terminations withstand vibration for improved reliability

Applications

• Agricultural machinery
• Automotive manufacturing
• Marine equipment
• Motorcycles

Does this connector have a locking system?

Yes, this connector has a locking system that helps prevent the socket from accidentally disconnecting from a plug. This is important in transportation applications where strong vibrations can be constant.
