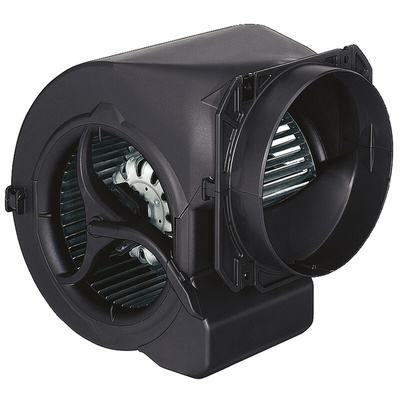

D2E146-HT59-02, ebm-papst D2E 146 Series Centrifugal Fan, 230 V ac, 910m³/h, AC Operation, 216 x 220 x 199mm

ebm-papst Centrifugal Blower

The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 910m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. It is 180mm long, 216mm wide and 199mm depth. It also features of forwarding curved blades are an ideal solution to a wide range of applications and are ideally suited for intake suction use. Additionally, this centrifugal fan and blower, specifically those used for intake suction using backwards curved blades, do not require a scroll housing increasing ease of use and versatility.

Features and Benefits

Impeller material is made from sheet steel and coated in black
Direction of rotation is clockwise, seen on rotor
Insulation class "F"
Mounting position of shaft is horizontal or rotor on bottom
Maintenance-free ball bearings
Motor protection TOP wired internally

Certifications

IP20 rated
EN 60335-2-31
CE certified
VDE approved
