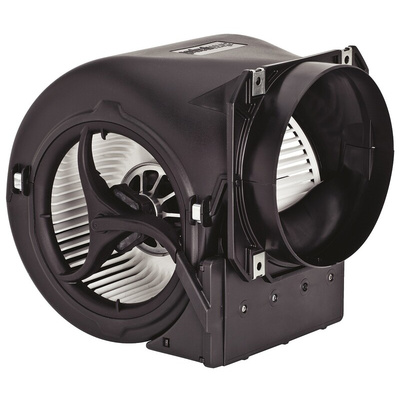

D3G146-HQ13-34, ebm-papst D3G146 Series Centrifugal Fan, 230 V ac, 1080m³/h, AC Operation, 216 x 220 x 199mm

ebm-papst Centrifugal Blower

The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 1080m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. Its features include forwarded curved blades. It is 216mm long, 220mm wide and 199mm depth. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design of this centrifugal blower makes it versatile and easy to use.

Features and Benefits

Impeller is backward curved with 280 diameter
Fitted with highly efficient GreenTech EC motor
Intelligent electronics for numerous control functions
Impeller material is made from sheet steel and coated in black
Direction of rotation is clockwise
Insulation class are "F"
Mounting position shaft horizontal or rotor on bottom
Maintenance-free ball bearings
Motor protection TOP wired internally
With housing (flange)

Applications

Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical Treatment
Households
Ventilation
Air conditioning
Refrigeration systems

Certifications

IP20 rated
EN 60335-1
EN 60335-2-31
CE certified
VDE approved
