G2E180-EH03-01, ebm-papst G2E180 Series Centrifugal Fan, 230 V ac, 755m³/h, AC Operation, 283 x 261 x 125mm

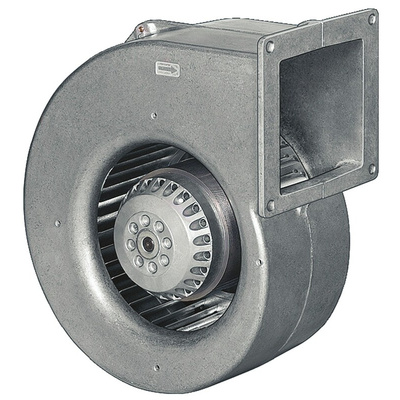

ebm-papst Centrifugal Fan

The ebm-papst single inlet centrifugal fan has an airflow of 755m³/h (for 50Hz) at a fan speed of 1950rpm and has a supply voltage rating of 230VAC. This centrifugal blower is integrated within the impeller that reduces installation dimensions. The fan is featured with forwarding curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design, this makes it versatile and easy to use.
It is 283mm long, 125mm wide and 261mm deep.

Note
To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

Features and Benefits

Electronically commutated motor blower with an external rotor motor.
Impeller material is made from sheet steel and coated in black
Housing material IS die-cast aluminium
Direction of rotation is clockwise, as seen on rotor
Insulation class B
Mounting position of shaft is horizontal or rotor on bottom
Bearings are maintenance-free ball bearings
Motor protection ’top’ wired internally
With housing (flange)

Certifications

IP44 rated
EN 60335-1
CE certified
CCC certified
