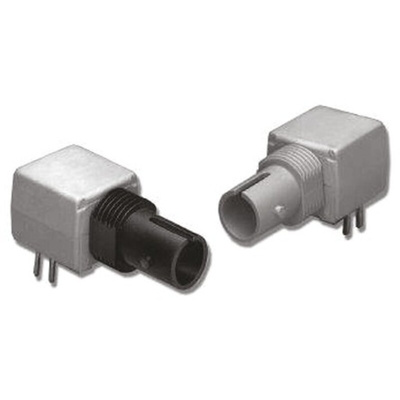

Broadcom HFBR-2416TZ 160MBd 820nm Fibre Optic Receiver, Round, ST Connector, Приемник

HFBR-0400TZ Series Miniature Link Components

Optical Receiver for Industrial Applications with ST-Threaded Port, RoHS Compliant

The HFBR-2416xxZ fiber optic receiver series are designed to operate with the Broadcom HFBR-14x4Z fiber optic transmitter series up to 160MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable.
This product is also available in other popular industry-standard connector: SMA.

Features

•Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards
•Low Cost Receiver
•Data Rate up to 160MBd
•Link Distances up to 2.7km
•Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 mm HCS Fiber
•Wide Operating Temperature Range -40C to +85C
•Unique Optical Port Design for Efficient Coupling
•Auto-Insertable and Wave Solderable
•No Board Mounting Hardware Required

Options:

•HFBR-2416MZ (Metal ST Port)
•HFBR-2416TCZ (Conductive ST-Threaded Port)
•HFBR-2416TZ (Plastic ST-Threaded Port)
•HFBR-2416Z (Plastic ST Port)

Applications

•Computer to Peripheral Links
•Computer Monitor Links
•Digital Cross Connect Links
•Modems and Multiplexers
•Suitable for Tempest Systems
•Industrial Control Links

Fibre Optics, Avago Technologies

HFBR-x4xxTZ Threaded ST Port Option Data Sheet
