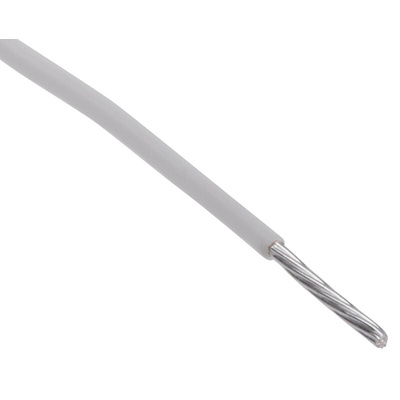

RS PRO White 0.12 mm² Hook Up Wire, 26 AWG, 7/0.15 mm, 25m, PTFE Insulation, Провод

RS PRO PTFE Equipment Wire 0.12 mm² CSA, White 25 m Reel

If you need to wire up equipment for use in harsh environments, choose this equipment wire from RS PRO. It's resistant to a wide variety of chemicals, oils and lubricants, meaning it can withstand a range of tough conditions.


The cable's silver-plated copper conductors offer excellent conductivity combined with corrosion resistance for long-lasting performance. The cable is also safe to use across a wide temperature range of -75°C to +200°C thanks to its polytetrafluoroethylene (PTFE) sheath. This makes it a good choice for use in high-temperature settings, where heat could threaten the integrity of electronic systems.


As this cable is Restriction of Hazardous Substances (RoHS) compliant, it contains only minimal levels of any harmful materials. It also meets British Standard BS3G 210 for safety and efficacy. You'll commonly find this type of cable in petrol stations, laboratories and construction sites.

Features and Benefits

• Wire size of 26 American Wire Gauge (AWG)


• BS3G210 wire style


• Cross-sectional area of 0.12 mm²


• Insulation wall thickness of 0.15 mm


• Polytetrafluoroethylene (PTFE) insulation material


• Silver-plated copper conductor material


• Length of 25 m


• Maximum operating temperature of +200°C


• Minimum operating temperature of -75°C


• Outer diameter of 0.8 mm


• White sheath colour


• Seven core strands of 0.15 mm


• Voltage rating of 300 V


• Resistant to fuels, gasoline, hydraulic fluid, lubricants and oils


• British Standard BS 3G 210:1996 compliant
