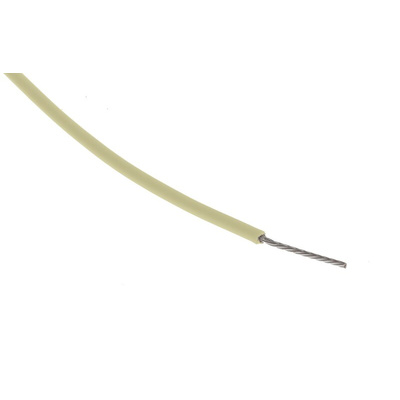

RS PRO Yellow 0.12 mm² Hook Up Wire, 26 AWG, 7/0.15 mm, 100m, PTFE Insulation, Провод

RS PRO PTFE Equipment Wire 0.12 mm² CSA, Yellow 100 m Reel

Use this equipment wire from RS PRO to wire up equipment for use in harsh environments. It can perform across a wide temperature range of -75°C to +100°C thanks to its polytetrafluoroethylene (PTFE) shield.


The cable will last a long time even in tough conditions, as it's resistant to a wide range of lubricants, oils and chemicals. For corrosion resistance and excellent conductivity, the cable's conductors are made of silver-plated copper.


As this cable contains only minimal levels of any harmful materials, it's Restriction of Hazardous Substances (RoHS) compliant. It also meets British Standard BS3G 210 for efficacy and safety. Use this type of cable where high temperatures could threaten the integrity of electronic systems, such as in laboratories, petrol stations and construction sites.

Features and Benefits

• Wire size of 26 American Wire Gauge (AWG)


• BS3G210 wire style


• Cross-sectional area of 0.12 mm²


• Insulation wall thickness of 0.15 mm


• Polytetrafluoroethylene (PTFE) insulation material


• Silver-plated copper conductor material


• Length of 100 m


• Maximum operating temperature of +200°C


• Minimum operating temperature of -75°C


• Outer diameter of 0.8 mm


• Yellow sheath colour


• Seven core strands of 0.15 mm


• Voltage rating of 300 V


• Resistant to fuels, gasoline, hydraulic fluid, lubricants and oils


• British Standard BS 3G 210:1996 compliant
