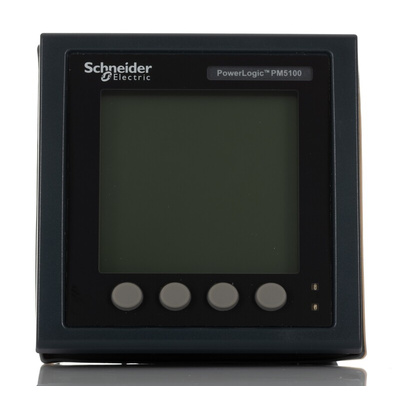

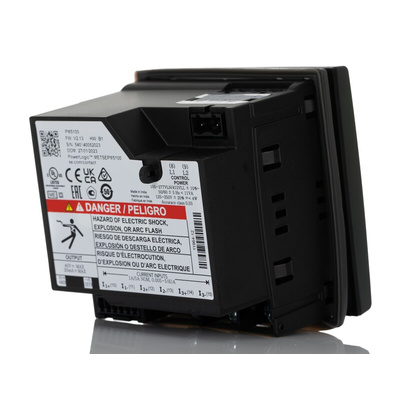

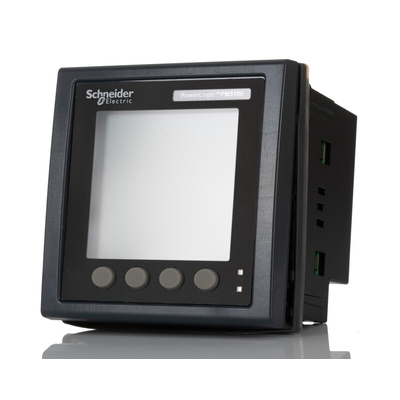

METSEPM5100, Schneider Electric 3 Phase LCD Digital Power Meter, Type, Измеритель мощности

Schneider Electric Power Meters - Basic Multi-function - PM5000 Series

Providing an ideal solution for cost management applications, the PM5000 Series features measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pinpoint energy savings, optimise equipment efficiency and utilisation as well as perform a high-level assessment of the power quality of an electrical network.

• Each unit within this range is 96 x 96 mm, they all have a modern, graphical display


• All three phases, neutral and ground can be monitored simultaneously


• Features bright, anti-glare display accompanied by large characters and powerful backlighting which is great for reading even when within extreme lighting conditions and viewing angles


• The menus are very easy to understand with 8 selectable languages, the menu also has graphics and icons to make learning about your electrical network more visually friendly


• Each device has a global billing certification


• Super easy to install, the power meter mounts using two clips - no tools are required


• Even easier to operate with intuitive navigation


• Suitable for a wealth of applications including circuit breaker monitoring and control, cost management (sub billing/tenant metering & cost allocation), Network management (basic power monitoring, min/max monitoring with timestamp), Alarming and WAGES monitoring

Schneider Electric Digital Power Meter, 4-Button Keypad, 2.5kHz Maximum Pulse Rate - PM5000 Series - METSEPM5100

Keep a keen eye on your electricity usage with this digital power meter from Schneider Electric. It monitors attached circuits to measure and show parameters like voltage, current and power, giving you a precise, real-time idea of how much energy is being consumed. A 67 (L) x 62.5mm (W) LCD display gives a clear picture of measured values, so they're easy to read at a glance. White LED backlighting means you can use the device in dark and low-light areas. As it's DIN rail mounted, you don't need tools to install this piece of kit, so the job's done in a jiffy.

Features & Benefits

• Compact dimensions of 96 (H) x 96 (W) x 72mm (D) for space-efficiency
• Withstands operating temperatures between -25°C and +70°C making it safe to use in demanding conditions
• IP52 rating shows that it's dust-resistant and withstands direct water sprays from less than 15°

Applications

• Measurement and instrumentation
• Manufacturing plants
• Automotive industry

How else can I use this power meter?

This unit has an alarm system that you can configure to integrate with safety relays and activate them in the event of an electrical fault.

Power Meter Series PM5000 - Data Sheet

Product Guide

PM5100 Installation Guide multilingual

PowerLogic PM5100 Series Power and Energy Meter User Guide

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Green Premium ecolabel

Product Environmental Profile

Instruction Sheet - METSEPM5100
