SK-32PTU-AR, 4D Systems, gen4 3.2in Arduino Compatible Display with Resistive Touch Screen, Дисплей

8417784
Номер производителя: SK-32PTU-ARПроизводитель: 4D Systems
Цена за шт.
27156.00 руб. (С НДС) *
Количество 5+ 10+
Цена 25935.00 руб. 25392.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

4D Systems Resistive Touch LCD Starter Kits with PICASO Processor for Use with Arduino

The range of resistive touch LCD Starter kits for Arduino available from 4D Systems provide everything needed by a user to easily interface between an Arduino (using its serial port + one GPIO pin) and the resistive touch LCD module, eliminating wiring hassles. The user can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV used to program the Arduino itself.

Powered from the Arduino the display module can be programmed and configured using 4D Systems Workshop4 software IDE (see datasheet for link to download). The LCD module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card.

Features

4D-Labs PICASO processor
Built-in extensive 4DGL graphics and system library functions
Flash memory for user code
Audio amplifier and loudspeaker
micro-SD card socket
13 x GPIO pins
I2C and UART serial communications
Powered from Arduino

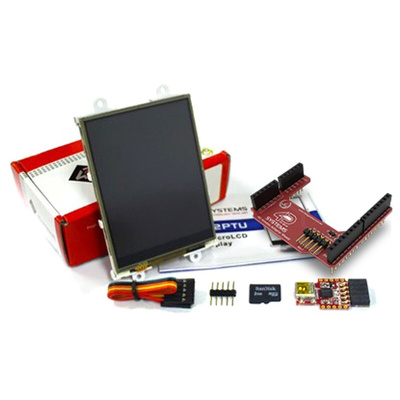

Package Contents

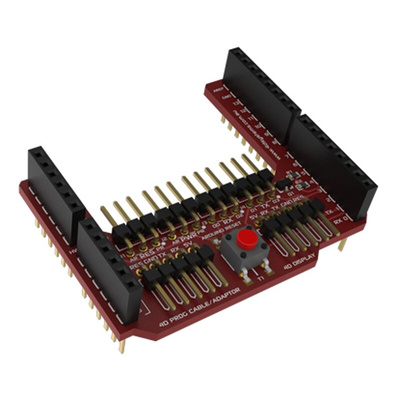

4D Arduino adapter Shield
microSD card - 2GB or 4GB, model dependant
uUSB-PA5 programming adapter
Female to female 150mm 5-way jumper cable
5 way male to male adapter
Quick Start User Guide

Note

Arduino MCU module is not included.

For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-24DT (RS part 1257941)
• gen4-uLCD-28DT (RS part 1257942)
• gen4-uLCD-32DT (RS part 1257943)
• gen4-uLCD-43DT (RS part 1257947)

4D Systems LCD Touchscreens

Техническая спецификация
pdfSK-32PTU-AR Arduino Display Module Pack Data Sheet
Для использования с:
Arduino
Размер диагонали дисплея:
3.2in
Размеры:
54.3 x 77.7 x 17мм
Размеры видимой области:
48.6 x 64.8мм
Разрешение дисплея:
240 x 320пикселей
Серия:
gen4
Технология дисплея:
Resistive Touch Screen
