uLCD-70DT-AR, 4D Systems, gen4 7in Arduino Compatible Display with Resistive Touch Screen, Дисплей

4D Systems Resistive Touch LCD Modules with DIABLO16 Processor for Use with Arduino

The range of resistive touch LCD modules for Arduino available from 4D Systems provide everything needed by a user to easily interface between an Arduino (using its serial port + one GPIO pin) and the resistive touch LCD module, eliminating wiring headaches. The user can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV used to program the Arduino itself.

Powered from the Arduino the display module DIABLO16 processor can be programmed and configured using 4D Systems’ Workshop4 IDE software (see datasheet for download instruction). The resistive touch LCD module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card.

Features

DIABLO16 processor
Built-in extensive 4DGL graphics and system library functions
Flash memory for user code
Audio amplifier and loudspeaker
microSD card socket
16 x GPIO pins
I2C, SPI and UART communications
Powered from Arduino

Kit Contents

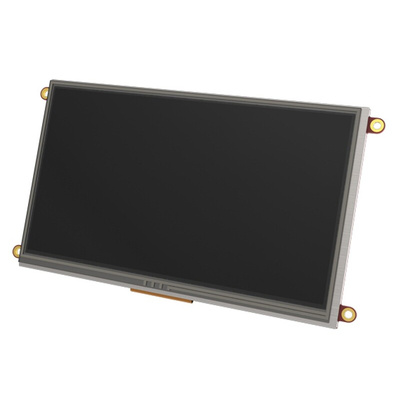

LCD Resistive Touch Module

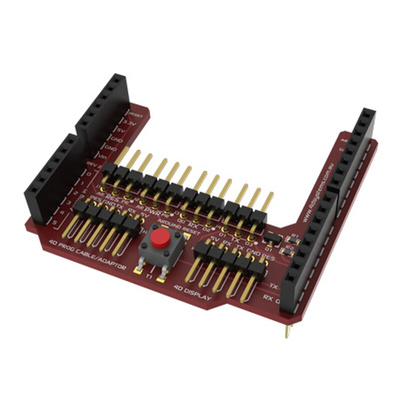

4D Arduino adapter shield
Female to female 150mm 5-way jumper cable
Quick start user guide

Note

Arduino MCU module is not included.

For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-43DT-AR (RS part 1258026)
• gen4-uLCD-70DT-AR (RS part 1258030)

4D Systems LCD Touchscreens

uLCD-70DT-AR Arduino Display Module Pack Data Sheet
