4D Systems 4DCAPE-43T TFT LCD Colour Display / Touch Screen, 4.3in, 480 x 272pixels, Дисплей

4D Systems LCD Cape

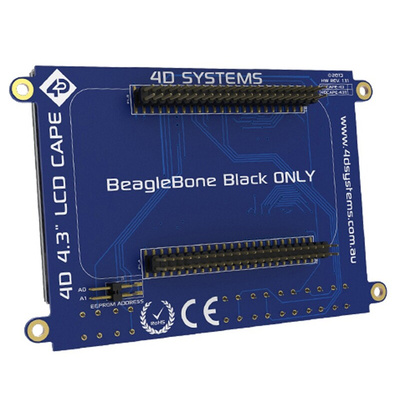

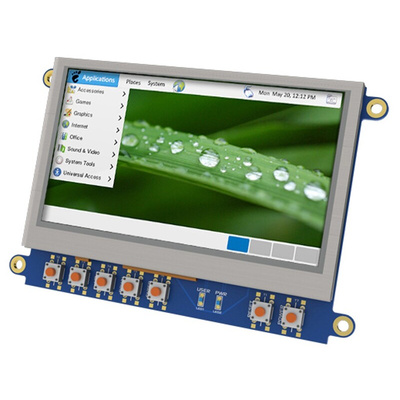

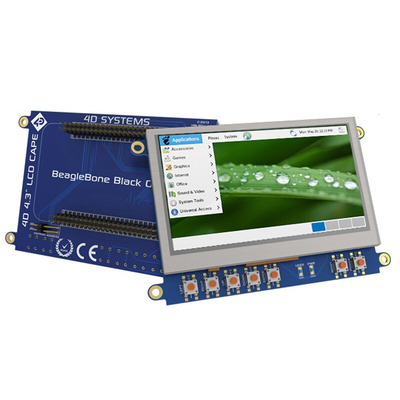

The 4D Systems 4.3in LCD Cape is designed for the BeagleBone Black (BBB). It functions as the primary display for the BBB whilst allowing additional CAPES to be added too. There are seven push buttons on the CAPE
left, right, up, down, enter, reset and power. There are also two LEDs, which indicate the power and user status. The BeagleBone Black simply connects to the back of the CAPE, providing it with everything it requires to function, for example, power and display signals. Four mounting holes allow for easy panel and enclosure mounting. All of these features are designed to aid the user in a quick and easy set-up, keeping time and number of components to a minimum. The CAPES also comes with a Quick Start User Guide.

Features and Benefits

2 x LEDs
7 x push buttons
Designed for BeagleBone Black
Resolution is 480 x 272 pixels
Resistive touch screen
TFT LCD CAPE

Certifications

CE certified

Datasheet - 4DCAPE Range 4.3\
