V7-1Z19E9, Honeywell Pin Plunger Micro Switch, Quick Connect Terminal, 25 A, SP-CO, Микропереключатель

Honeywell V7 Miniature Heavy Duty Microswitches

Honeywell V7 series of microswitches have been specifically designed with long term reliability in mind. Protected by a rugged thermoplastic housing, the V7 series of microswitches can be used in a comprehensive range of applications and environments.

Extremely reliable snap-spring mechanism which has more than 60 years proven service
Wide current rating options available ranging from 0.1A up to 25A to ensure your application is covered
The V7 series boasts industry-leading temperature ranges of -40°C to +175°C, to ensure reliability within harsh conditions for years giving you peace of mind
Offers a very long life cycle with up to 10,000,000 cycles of operation, providing the user with a reduction in machine downtime and providing a reduction in total system cost

Standards

CSA, ENEC & UL

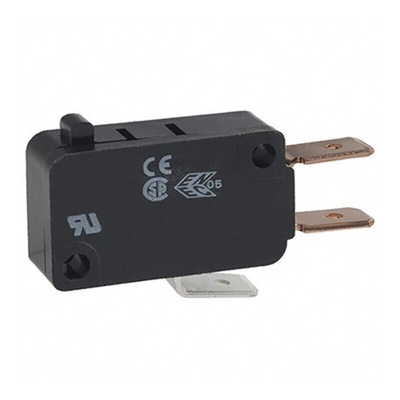

Honeywell Pin Plunger Microswitch, 25A, SPCO - V7 Series - V7-1Z19E9

This microswitch from Honeywell has a snap-action mechanism that opens and closes an electrical connection. It's a smaller version of a limit switch that's used to control mechanical operations. The switch is suitable for use with low-level currents of up to 25A. It has a high-strength thermoplastic housing that keeps the switch mechanism protected against wear and impact in heavy-duty industrial applications. The vertical movement of the pin plunger makes this switch a good choice for short, controlled machine movements.

Features & Benefits

• Silver plating on contacts is resistant to rust to ensure a high-quality connection
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Robust mechanical lifespan of up to 10 million cycles for long-lasting use

Applications

• Vending machines
• Emergency stop controls
• Door releases
• Water heaters
• Domestic appliances

How do pin plunger-style actuators work?

Pin plunger-style actuators have a plunger mechanism that's pushed down to create a reciprocating motion that triggers the microswitch.

How much force does this microswitch require?

This microswitch requires 2.21N (newtons) of operating force and 0.2N of release force, making it sensitive for quick response times.
