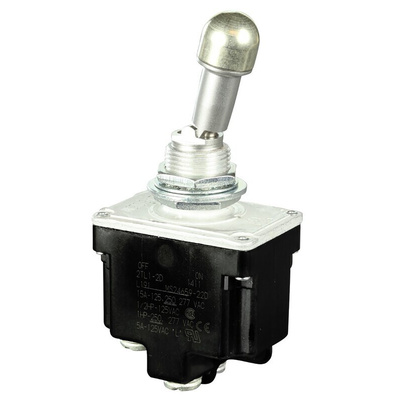

2TL1-2D, Honeywell Toggle Switch, Panel Mount, On-Off, DPST, Screw Terminal, Тумблер

Honeywell TL Series Toggle Switches

The TL series Micro Switch™ toggle switches feature pull-to-unlock toggle levers which help to prevent accidental operation (in order for the lever to change position it must be pulled 2.3mm). The have been constructed with high strength, temperature resistant, non-tracking case material and silver cadmium contacts.

Qualified to MIL-DTL-3950
Environment-proof sealing
1,2, and 4 pole circuitry
Standard and pull-to-unlock levers
2 and 3 position, maintained and momentary toggle action
Temperature range: -85 to +160 °F
Completely sealed switching chamber
Step-design case provides added space between terminals to help prevent shorting

Potential Applications:
Industrial machinery and equipment
Military and commercial aviation
Construction equipment
Test instruments
Agricultural machinery
Process control
Medical instrumentation

Standards

UL recognized, CSA certified, CE approved

Honeywell Toggle Switch, 2 Positions, Panel Mounting - TL Series - 2TL1-2D

This toggle switch from Honeywell gives you control over devices with sustained actions. It features a latching mechanism that helps to prevent accidental switching. Thanks to its spring-loaded lever actuator, the unit provides tactile feedback when switched, making it easy to operate even with gloved hands. The device has a bonded seal between the lever and the internal mechanism, making it ideal for use in demanding indoor and outdoor settings.

Features & Benefits

• Pull-to-unlock mechanism for ease of resetting the switch
• Screw terminals ensure secure electrical connections, even in the event of heavy vibrations
• Wide operating temperature range of -65°C to +71°C for use in demanding environments

Applications

• Specialised military vehicles
• Aircraft control equipment
• Construction industry

Is this toggle switch protected against short circuits?

The switch's casing is specially designed to maintain extra space between its terminals. This eliminates the risk of short circuits in the device.
