3051 BR001, Alpha Wire 3051 Series Brown 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 305m, PVC Insulation, Провод

Belden Alpha Wire 3051 Stranded Hook Up Wire, PVC insulation - 3051

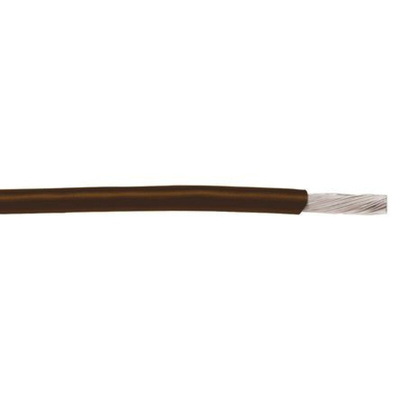

Dependable, robust, and simple to install - this 3051 hook up wire from Belden, Alpha Wire, is an excellent wiring solution for transmitting electricity to tools and equipment.

The 3051 wire uses 22 AWG tinned copper conductors so you can rely on excellent conductivity of electrical current for your application. This hook up wire also has a wide operating temperature of -40 to 105°C, so it can stand up to use even in extreme industrial environments. It has a brown outer sheath which enables colour coding to help ensure easier organisation of your control cabinet. It is designed to be quick and easy to strip, handle, and terminate so that installation can be done as efficiently as possible, saving you valuable time.

Features and Benefits:

• 7/30 stranded conductors allow flexibility
• 5.5 lbs maximum pulling tension
• 300 V Voltage rating
• Tinned copper conductors offer increased corrosion resistance

Applications:

Control cabinets
High temperature ovens
Specialised machine tools
Off-road construction equipment

What insulation does this wire use?

This wire has PVC (Polyvinyl Chloride) insulation, which ensures high resistance to abrasions and fire and makes this cable a safer choice for areas where there is a risk of fire.
