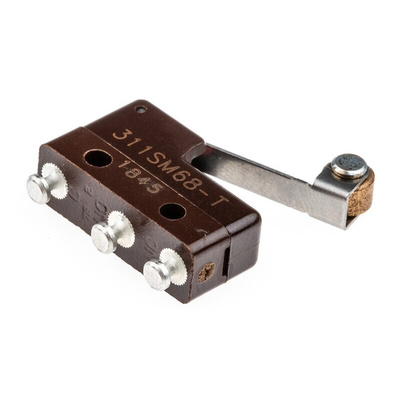

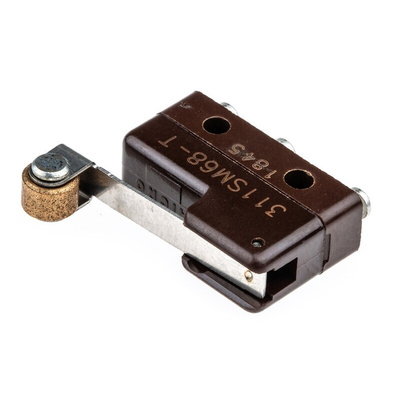

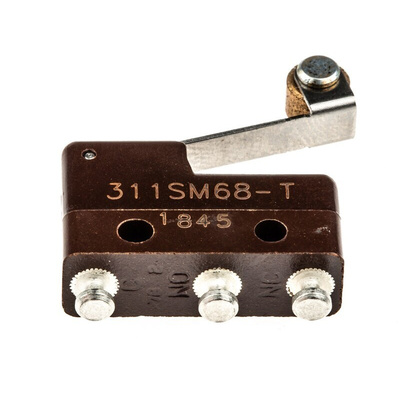

311SM68-T, Honeywell Roller Lever Micro Switch, Solder Terminal, 1 A, SP-CO, Микропереключатель

Honeywell Micro Switch™ - SM Series Subminiature Switch

The Honeywell series of sub miniature switches have been designed for simple and precision on/off application needs. The micro switch combines small size and light weight with precision operation, ample electrical capacity and long operating life.

Available in basic style, or with stainless steel actuator
Actuators supplied unfitted with fixing hardware
The roller actuator has an oil-impregnated phosphor-bronze roller
SPDT silver-plated wiping contacts, contained in a phenolic body
Contact Rating; 5A (Resistive); 3A (Inductive), 250Vac
Operating temperature range: -55 → +120°C

Honeywell Microswitch, 125V AC Operating Voltage, SPDT Contacts - SM Series - 311SM68-T

Need a reliable control device for your industrial applications? Choose this microswitch from Honeywell. It switches your circuit on or off when an object makes contact with its roller lever actuator, helping to ensure safe and efficient workplace conditions. The unit's phenolic housing is resistant to heat and chemicals for durability in challenging environments.

Features & Benefits

• Wide operating temperature range between -55°C and +125°C for use in demanding environments
• SPDT contact configuration lets you control up to two circuits for increased versatility
• Current rating of 1A for use in low-power applications

Applications

• Conveyors
• Process and packaging industry
• Food and beverage production

How large is this device?

This switch has compact dimensions of 19.8 (length) x 6.35 (width) x 12.4mm (height), so it's a good choice for use in areas where space is limited.

311SM68-T Datasheet

Drawing

Application Note - Switches And Sensors

Product Range Guide - Basic, Toggle & Rocker Switches

Brochure - Industrial Switches

SM Series Datasheet
