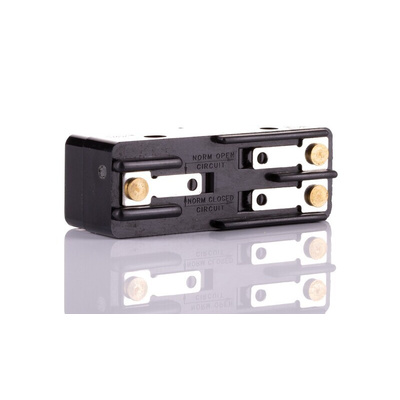

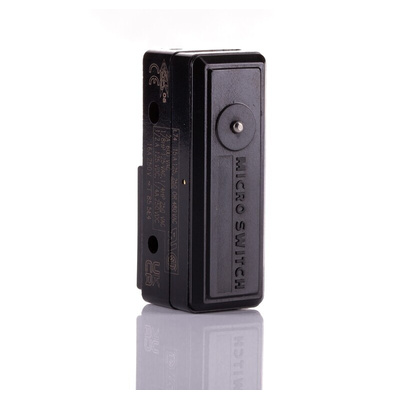

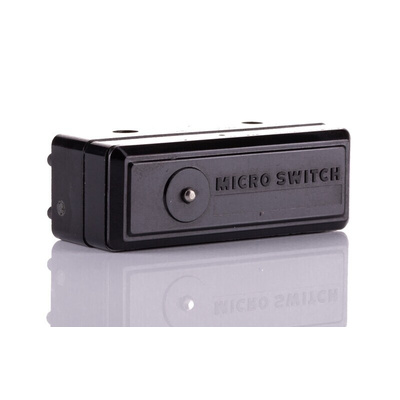

BZ-2R, Honeywell Pin Plunger Micro Switch, Solder Lug Terminal, 15 A, SP-CO, Микропереключатель

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

Honeywell Microswitch, Silver Contact Material, 2.5 to 3.61N Operating Force - BZ Series - BZ-2R

Use this microswitch from Honeywell to control the circuits in your electronic devices. When the built-in pin plunger is pushed, it causes the contacts to open or close, deactivating or energising the electric circuit. This unit has a robust mechanical service life of up to 20 million cycles for reliable long-term performance. Thanks to its wide operating temperature range between -55°C and +125°C, you can safely use this switch in demanding environments.

Features & Benefits

• Low operating force between 2.5 and 3.61N for sensitive switching
• Phenolic housing for resistance to heat and chemicals
• Silver contacts are highly conductive and resistant to corrosion for an extended service life

Applications

• Safety systems
• Consumer electronics
• Vending machines
• Office equipment

What's the advantage of a pin plunger actuator?

As microswitches with pin plungers are activated by quick and direct strokes, they're suitable for use in applications where a high level of precision is needed.
