BZ-2RL-A2, Honeywell Lever Micro Switch, Screw Terminal, 15 A, SP-CO, Микропереключатель

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

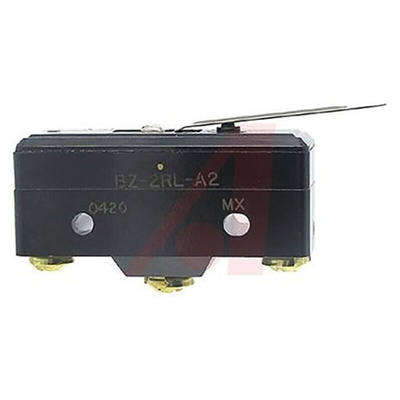

Honeywell Microswitch, Phenolic Housing Material, 1.39N Operating Force - BZ Series - BZ-2RL-A2

Need a reliable way to control the circuits in your equipment? Turn to this microswitch from Honeywell. It features a lever actuator that opens or closes the circuit when activated. As the lever is made from steel, it's resistant to corrosion and impact. A high contact current rating of 15A means this unit is suitable for use in heavy-duty systems. Its tough phenolic housing is resistant to heat and chemicals for durability in harsh environments.

Features & Benefits

• Robust mechanical service life of up to 20 million cycles for long-term performance
• Screw terminals for a stable electrical connection
• Wide operating temperature range between -55°C and +85°C for use in demanding settings

Applications

• Elevators
• HVAC systems
• Construction sites
• Agricultural equipment

How do I mount this microswitch?

You can install this switch by inserting pins or screws into its pre-drilled mounting holes. The holes are elongated for increased ease of installation.
