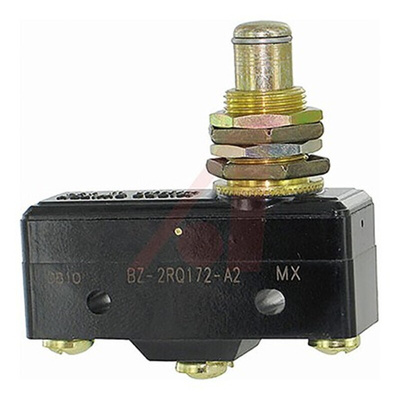

BZ-2RQ172-A2, Honeywell Plunger Micro Switch, Screw Terminal, 1 A, SP-CO, Микропереключатель

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

Honeywell SP-CO Plunger Microswitch, 3.61N Operating Force, 1A - BZ Series - BZ-2RQ172-A2

This Honeywell microswitch is used for basic on/off applications in mechatronic devices. It activates when a load is placed on the overtravel (OT) plunger actuator for ease of use. This device's housing is made from burn-resistant, weatherproof phenolic material that's lightweight yet durable and long-lasting. Thanks to its low contact current rating of 1A, this component is suitable for low-power applications. It operates reliably within a wide temperature range of -55°C to +85°C, so you can use it in a variety of demanding environments.

Features & Benefits

• Release force of 1.11N for improved sensitivity to contact
• Silver cadmium oxide contacts for high conductivity and a reliable connection
• Long mechanical life of up to 20,000,000 cycles for enhanced performance
• Screw termination method for quick and easy installation without the need for complex tools

Applications

• Irrigation systems
• Timing devices
• Test instruments
• Medical and dental equipment

Is this microswitch waterproof?

This microswitch has an IP67 (ingress protection) rating, which means that it's fully dustproof and can withstand submersion in 1m of water for up to 30 minutes. This means it's essentially waterproof.

Datasheet

Datasheet

Catalogue - Micro Switch BZ/BA/BM/BE & 6AS Series

Range Guide - Basic, Toggle & Rocker Switches
