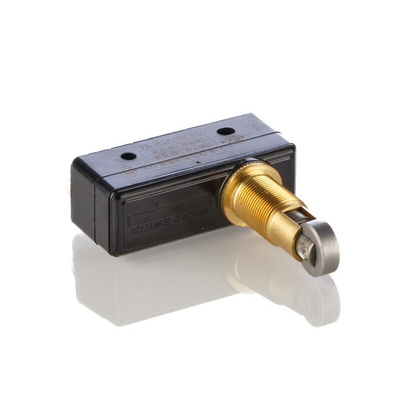

BZ-2RQ181-A2, Honeywell Plunger Micro Switch, Screw Terminal, 15 A, SP-CO, Микропереключатель

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

Honeywell SP-CO Plunger Microswitch, 3.61N Operating Force, 15A - BZ Series - BZ-2RQ181-A2

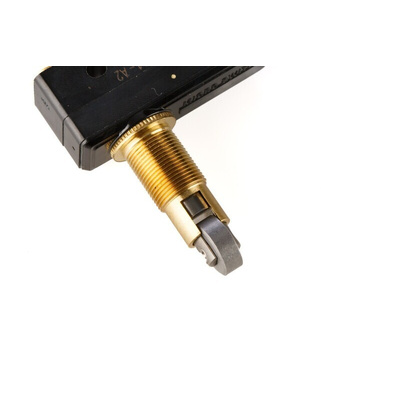

This microswitch from Honeywell is designed for on/off applications in industrial environments where the roller plunger needs to be at a 90° angle to the switch. Its case is made of a lightweight phenolic material that's highly durable and provides good insulation, making it safe to handle. This unit has a long lifespan of up to 20 million cycles, so it will last a long time and reduce the need for frequent replacement and maintenance. It has an elongated mounting hole that accepts both pins and screws, allowing for simple and versatile installation.

Features & Benefits

• Compact dimensions of 49.3 (length) x 17.5 (width) x 24.1mm (height) for use in tight spaces
• Silver contact material for excellent conductivity and arc resistance
• Broad operating temperature range of -55°C to +85°C for use in a variety of demanding environments

Applications

• Office equipment
• Test instruments
• Medical and dental equipment
• Valves

How much force does this microswitch require to activate?

The switch requires only 2.5 to 3.61N of operating force, so it's highly sensitive and reacts quickly for fast response times.
