RS PRO 1-Axis Joystick Controller Knob, Single Axis Potentiometric, IP64, Джойстик-переключатель

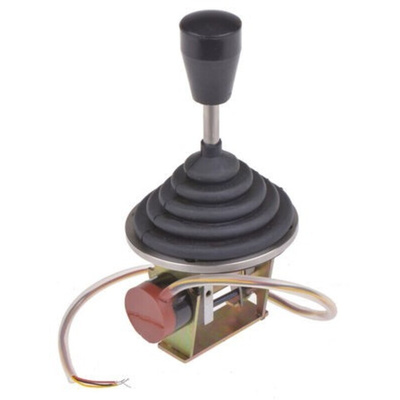

RS PRO 1-Axis Joystick Controller Knob, Single Axis Potentiometric, IP64

Manoeuvre your machinery with this single-axis joystick controller knob from RS PRO. You can use it in precision finger-operated applications that require movement forwards, backwards and sideways. It's found in industrial settings, including factories, scrap yards and building sites.
The rubber boot is made of nitrile rubber and the body is precision machined out of anodised aluminium, so the unit is long-lasting and can withstand repeated use. It won't disturb other devices in your working environment either, as the joystick is fitted with a precious metal wiper that generates zero electrical noise. You can use it in a wide range of conditions, thanks to the controller's -45ºC to +105ºC operating temperature range.
The joystick is IP64 rated, which means it will resist light rain and spray. This component is suitable for operating cranes, tipping mechanisms on dump trucks and moving wheelchairs.

Features and Benefits

• Contact current rating of 10 mA (short time wiper current)
• Depth behind panel of 40 mm
• Knob handle type
• IP rating of IP64
• Joystick travel of 25-0-25º
• Mechanical life of 2,000,000 operations
• Operating temperature range of -45ºC to +105ºC
• Single-axis potentiometric switch technology
• Teflon wire (4-wire) terminal

RS Pro Datasheet
