HMIG3U, Schneider Electric Adapter For Use With HMI Magelis GTU Universal Panel

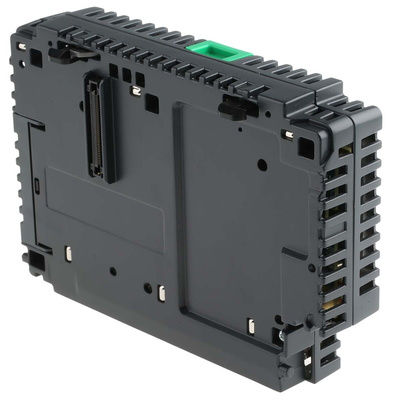

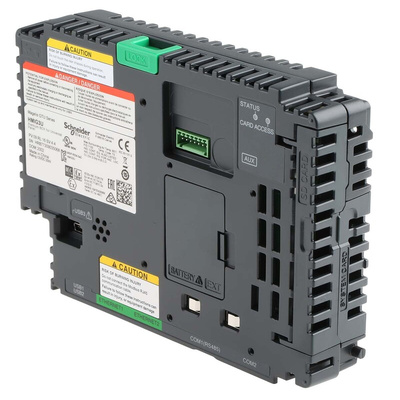

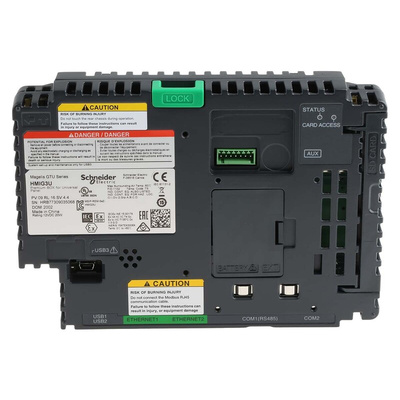

Schneider Electric HMIG3U CPU for use with HMI Magelis GTU

Magelis GTU's are innovatively designed by Schneider Electric, allowing users to create specifically tailored HMI configurations. Featuring Vijeo Designer runtime software, the HMIG3U is a box module with display interface and 1 GB SD card storage. This device also boasts solid fix fasteners ensuring it is securely fitted, whilst tool free changes can be made simply by depressing the small green button.

Dual LAN to IT and PLC communication provides enhanced performance and data flow security, 2 serial ports with different signal types, 3 to 6 USB ports, support of all main industrial protocols and optional interface for fieldbus ensures full open connectivity. Compatible with many other HMI Schneider Electric accessories this unit provides robust performance, open connectivity and a wealth of other features whilst remaining user friendly allowing you to build your perfect HMI.

Features and Benefits:

• 2 SD card slots
• 1GB SD card
• RJ45 connector
• Alarm/Buzzer option
• Real time OS
• 8000 maximum variables
• 300 mW speaker output
• Status LED
• Dual LAN and Serial port
• Multiscreen DVI output

Applications - With the Magelis GTU maintenance is simplified, equipment can be accessed remotely, IDS allows for database management and security of operations can also be improved. HMI or Human-Machine Interface is usually a dashboard or user interface to connect a person or operator to a machine. Most commonly used for Industrial, electronics and automation applications.
