34803-3212, Molex, CTX64, 34803 Female

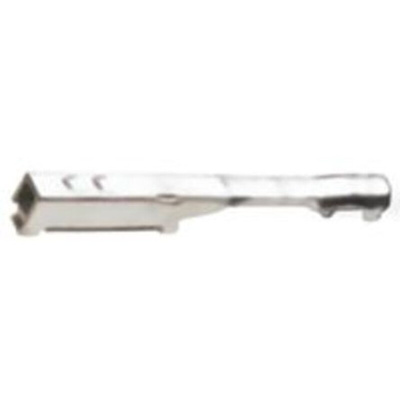

Stac64™ CTX64 Female Receptacle Terminals

Stac64™ CTX64 female Receptacle Crimp Terminals made from tin plated copper alloy. These female Receptacle Crimp Terminals can accept a wire from 0.22 to 0.85 mm² with an insulation diameter of 1.3-1.85 mm.

Molex Automotive Connector Terminal, Copper Alloy Construction, 14V DC Maximum Voltage - CTX64 Series - 34803-3212

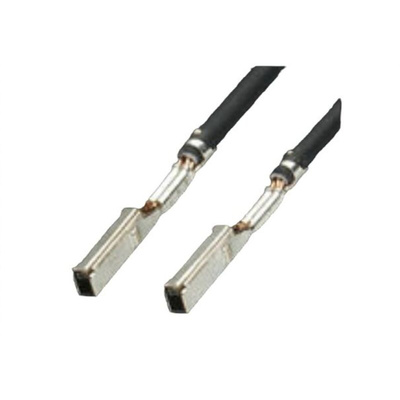

When time is tight, make a swift connection with this automotive connector terminal from Molex. Metal arms hold both the wire and the insulation securely, so you get a solderless connection you can depend on. The end clips accurately into Stac64 headers (such as 724-1441), making it quick and easy to plug in your wire-to-board connections. As the end is square, it creates multiple contact points, so your signals are never out of touch. A retention tab means the unit holds firm against machine vibrations.

Features & Benefits

• Tin-plated copper keeps connections conductive and corrosion resistant
• Accepts wire sizes between 0.50 and 0.85mm² to give you circuit-building flexibility

Applications

• Automatic transmission
• Vehicle control units
• Agricultural machines

How do I get an accurate crimp on this terminal?

Get your crimp spot on by using Molex pliers (821-6054). These get your wire into the right position and the ratchet mechanism ensures a full crimp.

Molex Stackable Connection System, 2.54 mm - Stac64™

CTX64 Receptacle Crimp Terminal - Application Specification

CTX64 Receptacle Crimp Terminal - Datasheet

CTX64 Receptacle Crimp Terminal - Drawing

STAC64 Unsealed Connector System - Brochure

Application Specification Sheet - 34803-3212
