46999-0275, Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 2 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

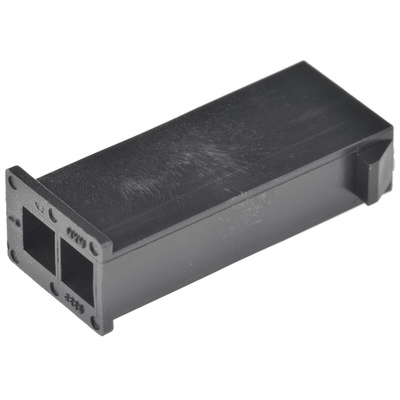

Molex Connector Housing, Cable Mounting, 7.4mm Width - Mini-Fit Jr Series - 46999-0275

Protect your circuit's sensitive joins with this connector housing from Molex. It guards contacts against dirt and dust, stopping corrosion in its tracks to keep your connection working at its best. Bumps and scrapes are no match for the unit's impact-resistant nylon body, so it's a safe bet for use around moving equipment. Two contacts over two rows make this a space-efficient option for linking up a pair of circuits. By locking to its receptacle, the housing holds connections tight to cut down on accidental unplugging.

Features & Benefits

• Narrow pitch of 4.2mm to easily slot into a small enclosure
• Self-aligning mating ensures a proper connection
• Comes in a pack of 10 to keep you stocked up

Applications

• Office equipment
• Server racks
• Electronics manufacturing

How do I unplug this housing from my device?

You disconnect this product by pressing its side-mounted latch and pulling it back, making it easy to swap between your connections.

Molex Minifit Jr.™ Series

Mini-Fit Jr Plug (with out panel mounting ears) - Drawing

Molex Mini-Fit Connector Datasheet
