BZ-2RW8244-A2, Honeywell Straight Lever Micro Switch, Screw Terminal, 5 A, SPDT, Микропереключатель

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment

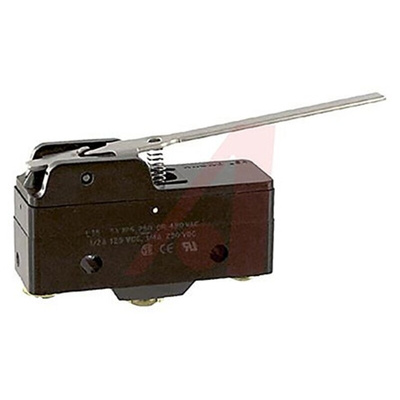

Honeywell Microswitch, Straight Lever Actuator, 0.7N Operating Force - BZ Series - BZ-2RW8244-A2

This microswitch from Honeywell is designed to switch circuits on or off. When the lever makes physical contact with an object, it causes the contacts to change position, activating the circuits. As the contacts are made from silver, they're highly conductive and resistant to corrosion for a reliable connection. A robust mechanical service life of up to 20 million cycles means you can rely on this unit for long-term performance.

Features & Benefits

• Wide operating temperature range of -54°C to +204°C for use in demanding environments
• Phenolic housing is resistant to impact and heat for durability
• Light weight of 34.5g for minimal strain on your equipment

Applications

• HVAC systems
• Measuring instruments
• Medical and dental equipment

How do I mount this microswitch?

You can mount this switch by simply screwing it in place. It comes with elongated mounting holes for increased ease of installation.

Datasheet

Brochure - Transportation Applications
