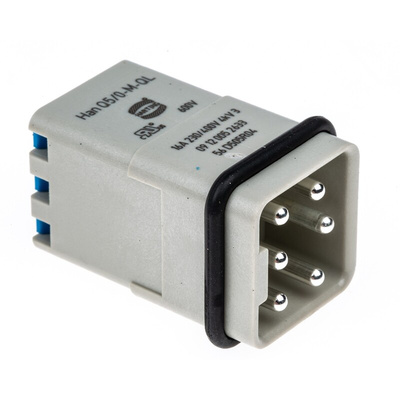

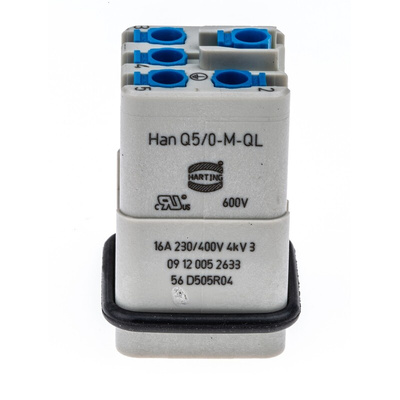

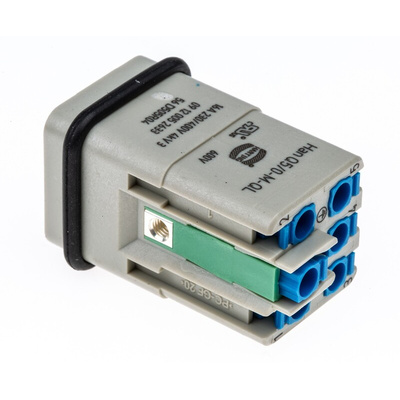

09120052633, HARTING Heavy Duty Power Connector Insert, 16A, Male, HAN Q Series, 5 Contacts

Han Q 5/0 Series, Quick Lock

Han Q 5/0 quick lock connectors, ideal for field assembly as no special tools are needed, fuilly compatible with Han Q 5/0 standard crimp inserts and metal and plastic hoods from the Han 3A series.

5 contacts plus earth
Rated at 16A 230/400V
Temperature range -40 to +125° C

Note

When using Han 3A HPR hoods/housings the sealiong on the insert must be removed.

Approvals

cRUus

Han® Q Series

These Han® Q Series, they are intended for use with hoods and housings contained within range 1. This hood and housing range is associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of this range.
