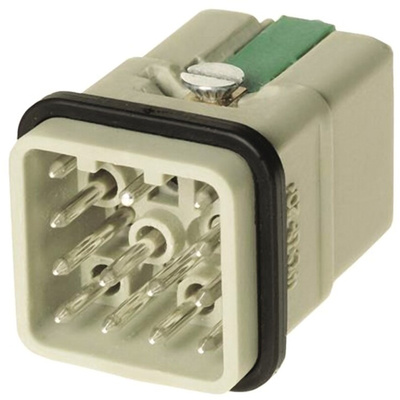

09120123001, HARTING Heavy Duty Power Connector Insert, 10A, Male, HAN Q Series, 12 Contacts

Han Q 12/0 Series

Han Q 12/0 quick lock connectors, 12 contacts plus earth, uses contacts belonging to the Han D series. These Han Q connectors are fully compatible with metal and plastic hoods from the Han 3A series.

12 contacts plus earth
Rated at 10A 400V
Temperature range -40 to +125° C
Polycarbonate construction

Note

When using Han 3A HPR hoods/housings the sealiong on the insert must be removed.

Han® Q Series

These Han® Q Series, they are intended for use with hoods and housings contained within range 1. This hood and housing range is associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of this range.
