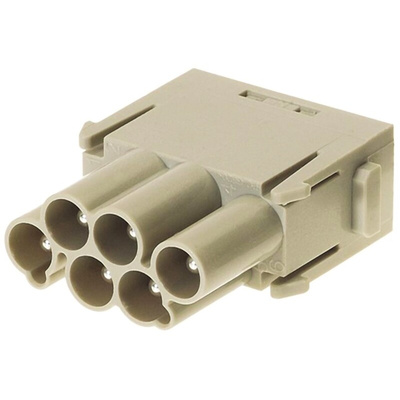

09140063041, HARTING Heavy Duty Power Connector Module, 16A, Male, Han-Modular Series, 6 Contacts

Han E Protected Module

Han E protected module, suitable for use with Han E crimp contacts, these Han connectors are designed for high working voltages up to 830V, with a finger safe feature once contacts are installed.

Rated at 16A, 830V
Temperature range -40 to +125° C
Over 500 mating cycles

Standards

DINE EN 60664-1, DIN EN 61984

Approvals

RU

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han Modular

Datasheet
