09140073101, HARTING Heavy Duty Power Connector Module, 40A, Female, Han-Modular Series, 4+3 Contacts

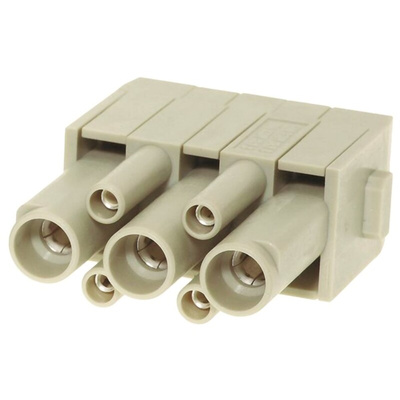

Han CD Module

Han CD module, featuring the facility to fit 3 contacts for power circuits (rated at 40A) and 4 contacts for signal (10A) applications, contacts are not supplied. These Han CD modules once populated with contacts are finger safe and ideal for use for motor drive applications amongst others.

Rated at 40A, 830V (power contacts) and 10A, 830V (signal contacts)
Polycarbonate construction
Over 500 mating cycles
Temperature range -40 to +125° C

Standards

DINE EN 60664-1, DIN EN 61984

Approvals

RU

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han Modular

Datasheet
