Arlo Mobile Robot Wheel Kit

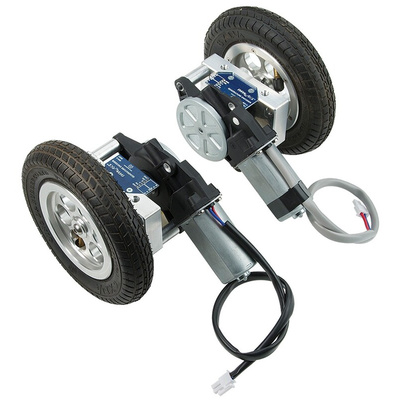

The Parallax motor mount is the wheel kit for the other two kits. This motor is the aluminium version so it provides a toughened chassis over the plastic. It can hold a total of 27kg with rugged tyres. Two independent motors drive the wheels so you can get the odometry feedback of your choice.

The Arlo robot is a mobile robot design to carry payloads. It is an indoor robot and uses a microcontroller for control. It is highly customizable with sensors and computers.

Features and benefits:

•Aluminium makes for a tough chassis with an increased payload support.
•36-step optical slotted disk with quadrature output on each axle.
•Rugged inner-tubed tyres pneumatic tyres
•Maximum payload of 27KG
•Torque of 85lbs per motor assembly
•Wheel rotation with no load: 100rpm

What’s in the kit?

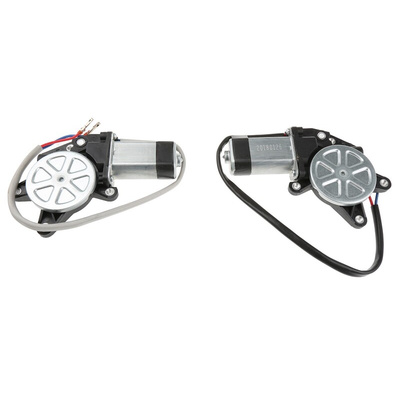

•Two 12 VDC Motors. (Left & Right)
•36 Position quadrature encoder set
•Two motor bearing blocks.
•Two Main rims
•Two rim rings
•Two robot drive axle’s
•Two 1/8 x 1” Roll Pink

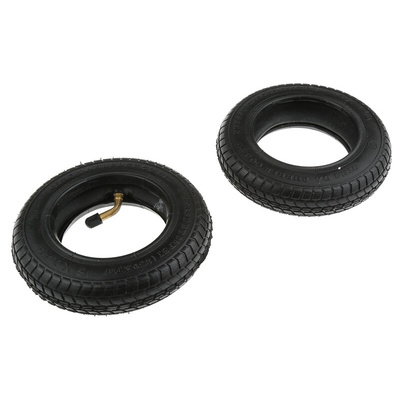

•Two Knobby tires with rubber tube
•Two 0.5 ID x 1.125” OD Ball Bearing
•Two Hex keys (5mm & 5/32”)
•All screws and spacers.

This is only the wheel kit, to have a fully functioning robot you will need the below kits.
Base Kit: 8430822
Top Kit: 8430796

Supplied with

All necessary screws and spacers

The Arlo Robotic System provides the basic hardware to build a mid-size robotics platform ideal for telepresence and autonomous robots. The format is one of a two-wheeled buggy with castors fore and aft. The user can then attach the processor board, motor control boards and sensor/actuator modules to suit their application.

Robot motor, mount and wheel kit user guide
