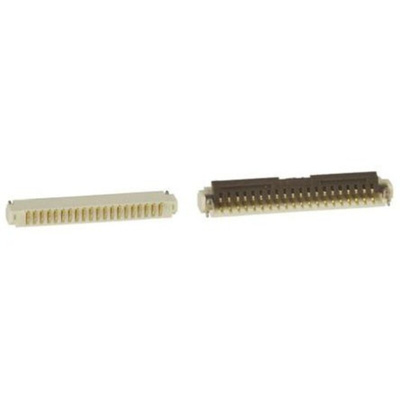

FH33-19S-0.5SH(10), Hirose, FH33, 8888 0.5mm Pitch 19 Way Right Angle Female FPC Connector, ZIF Bottom Contact, Разъем

Hirose FH33 Series 0.5 mm and 1.0 mm FPC/FFC Connectors

FH26 ZIF (zero insertion force) FPC/FFC connectors with a compact design and a low profile height of 1.2 mm. The mounting depth of these FH33 ZIF FPC connectors is just 2.5 mm offering a reduced footprint and significant PCB space saving. A one-touch ZIF rotating actuator allows easy and accurate insertion and secure retention of the FPC. When the actuator is fully closed, it produces a tactile click to confirm it is firmly locked in place. The bottom of these FPC/FFC connectors is solid and the contacts are not exposed allowing the connector to be mounted over conductive traces on the PCB

Features and Benefits

• Low profile 1.25 mm height
• Narrow width of just 2.5 mm for PCB saving
• Rotating one-touch actuator for easy FPC/FFC insertion and secure retention
• Tactile click confirms full closure of actuator
• Accept a standard 0.3 mm thick FPC.

Applications

These FH33 FPC/FFC connectors are ideal for use in miniaturized portable equipment and personal mobile devices.

0.5mm FPC/FFC - Hirose

0.5mm SMT FPC/FFC ZIF Connector - Series FH33

FH33 Series ZIF FPC Right Angle 19 Way - Drawing
