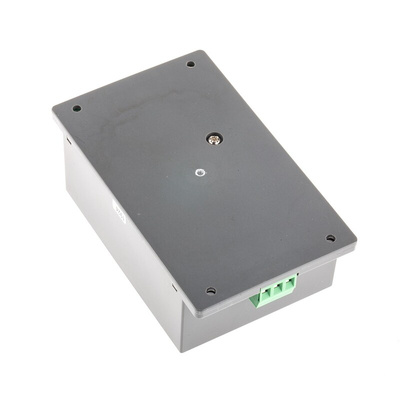

TMDC 60-2412, TRACOPOWER TMDC 60 DC-DC Converter, 12V dc/ 5A Output, 9 → 36 V dc Input, 60W, Chassis Mount, +85°C Max Temp, Преобразователь

Traco 60W, Single Output, Regulated, Isolated DC-DC Converter - TMDC 60 Series

The Traco Power, encapsulated DC-DC converter TMDC 20, is a range of high performance modules. These isolated DC-DC converters have a wide 4:1 input voltage range and a tight output Voltage regulation. The TMDC 20 series needs a minimum load and offers a high efficiency also at low load conditions. The output voltage of these DC-DC converters is adjustable by external resistor. The TMDC 20 Series also features remote On/Off and power good LED indicator, which makes this unit a practical and reliable DC source for any application. The EMC immunity of these DC-DC converters is aligned for industrial applications.

Fully encapsulated low profile plastic case
Ultra wide 4:1 input voltage range
Operating temperature range –40C to +65C
Reinforced I/O isolation 2500Vdc
Excellent efficiency up to 92%
Input filter to meet EN 55022, class A
Optional DIN-Rail mount adapter
No minimum load required
Input polarity protection
Power good LED indicator
Output voltage adjustable
Remote On/Off

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

CB, UL/cUL

Traco Power DC-DC Converter, 91% Efficiency, Remote On/Off - TMDC 60 Series - TMDC 60-2412

Keep your PCB-linked components out of harm's way with this DC-DC converter from Traco Power. It steps down an input voltage ranging between 9 and 36V DC and stabilises it at 24V DC to ensure your system runs without a glitch. Non-conductive plastic housing resists impact and prevents shocks, so you can be sure it's safe to handle during installation. This piece of kit performs reliably in challenging environments, thanks to an operating temperature range between -40°C and +85°C.

Features & Benefits

• Isolation voltage of 2.5kV safeguards against damage from power inrushes
• Screw terminals for speedy installation with a simple screwdriver
• Power rating of 60W makes it suitable for heavy-duty applications
• Cools by natural convection, so you don't need to install a heatsink

Applications

• Telecommunications industry
• Automotive equipment
• Warehousing facilities

What voltage does this converter deliver?

It has an output current of 5A indicating that it's best suited for installation in low-voltage applications.

How much space does this unit take up?

Compact dimensions of 112 (L) x 67.8 (W) x 38mm (D) mean the converter has a neat footprint that takes up minimal space.
